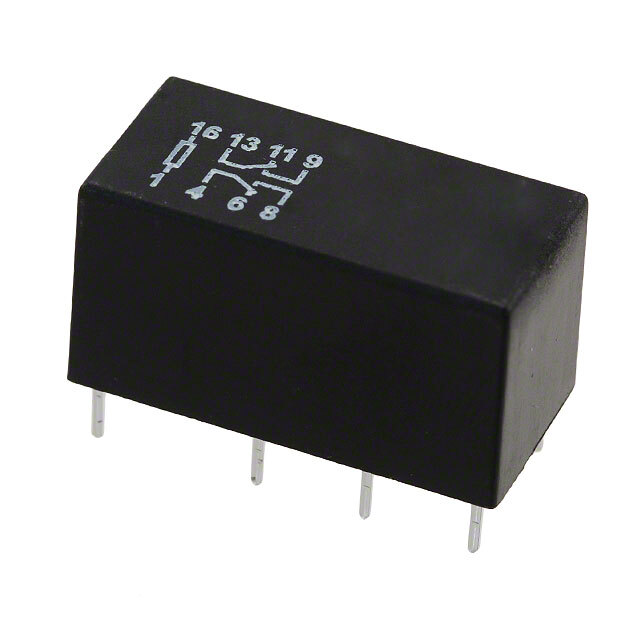

Same model may have multiple batches, images only for reference.
AGQ260S24 Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AGQ260S24

Part No AGQ260S24
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Surface Mount
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 125VAC, 110VDC - Max
Load - Max Switching 37.5VA, 60W
Coil Current 5 mA
Coil Type Non Latching
Termination Style Gull Wing
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Approval Agency BSI, cURus
Relay Type Telecom
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1550174-AGQ260S24
Ultra Librarian 3D Model Ultra Librarian AGQ260S24 CAD Model
