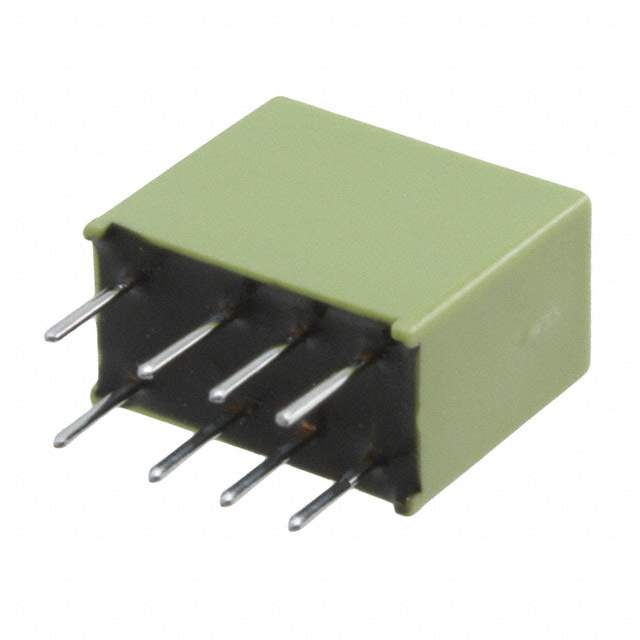

AGN21003 Real Image
Same model may have multiple batches, images only for reference.

AGN21003

Part No AGN21003
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 3VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic Electric Works
Series AGN
Package Tube
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 33.3 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Must Operate Voltage 2.25 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd) , Gold (Au)
Relay Type Telecom
Coil Resistance 90 Ohms
Base Product Number AGN210
Standard Package 50
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1350915-AGN21003
Ultra Librarian 3D Model Ultra Librarian AGN21003 CAD Model

Description

The AGN21003 relay from Panasonic Electric Works is a DPDT (2 Form C) telecom relay with a switching voltage of 125VAC and 110VDC, and a contact rating of 1A.

  • Contact Form: DPDT (2 Form C)
  • Switching Voltage: 125VAC, 110VDC
  • Contact Rating: 1A
  • Coil Voltage: 3VDC
  • Coil Resistance: 90 Ohms
  • Coil Type: Latching, Single Coil
  • Operating Temperature: -40°C to 85°C
  • Operate Time: 4ms
  • Release Time: 4ms
  • Contact Material: Silver Palladium (AgPd), Gold (Au)
  • Termination Style: PC Pin
  • Packaging: Tube
  • Standard Package Quantity: 50
  • Relay Type: Telecom Relay
  • Series: AGN
  • Manufacturer: Panasonic Electric Works
