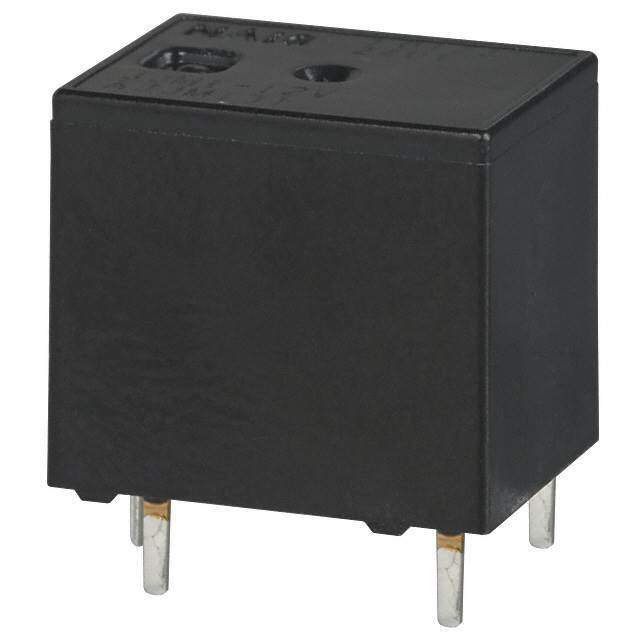

JJM1-12V

Name: JJM1-12V
Brand: Panasonic
SKU: 1167866
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	JJM1-12V
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY AUTOMOTIVE SPDT 20A 12V /
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays>Automotive Relays
Mfr	Panasonic Electric Works
Series	JJM
Package	Tube
Coil Type	Non Latching
Coil Current	53.3 mA
Coil Voltage	12VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	20 A
Switching Voltage	14VDC - Nom
Must Operate Voltage	7.2 VDC
Must Release Voltage	1 VDC
Operate Time	10 ms
Release Time	10 ms
Features	Sealed - Fully
Mounting Type	Through Hole
Termination Style	PC Pin
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver Alloy, Cadmium Free
Coil Power	640mW
Coil Resistance	225 Ohms
Base Product Number	JJM1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.41.0050
Other Names	JJM1-12V-ND,JJM1-12V-NDR,JJM112V,255-2220
Standard Package	50
Win Source Part Number	1167866-JJM1-12V
Ultra Librarian 3D Model	Ultra Librarian JJM1-12V CAD Model

Alternative Products

Description

The Panasonic Electric Works JJM series automotive relay is a sealed, fully-featured component with a package size of tube.

Series: JJM
Application: Automotive
Package: Tube
Contact Form: SPDT (1 Form C)
Contact Material: Silver Alloy, Cadmium-Free
Coil Voltage: 12VDC
Coil Resistance: 225 Ohms
Coil Current: 53.3 mA
Contact Rating (Current): 20 A
Switching Voltage: 14VDC - Nom
Temperature Range: -40°C to 85°C
Alternative Parts: JJM1-12 V and JJM112V
