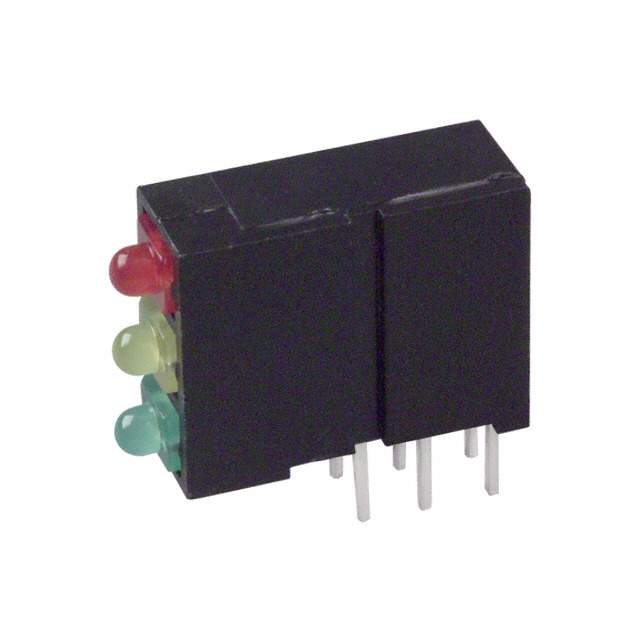

570-0100-132F Real Image
Same model may have multiple batches, images only for reference.

570-0100-132F

Part No 570-0100-132F
Manufacturer Dialight
Catalog Optics - LEDs - Light Pipes
Description LED Tri-Level Uni-Color Green/Red/Yellow 565nm/627nm/590nm 6-Pin Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Green, Red, Yellow
Current 20 mA
Depth 14.37 mm
Diameter 2 mm
Dominant Wavelength 625 nm
Forward Current 10 mA
Forward Voltage 2.2 V
Height 10.16 mm
Housing Color Black
Illumination Color Green, Red, Yellow
Lead Free Lead Free
Length 5.08 mm
Lens Color Green, Red, Yellow
Lens Style Diffused
Luminous Intensity 10 mcd
Max Operating Temperature 100 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Contacts 6
Number of Elements 3
Number of LEDs 3
Number of Pins 6
Operating Supply Voltage 2.5 V
Packaging Bulk
Radiation Hardening No
REACH SVHC No SVHC
Reverse Voltage 5 V
RoHS Compliant
Schedule B 8541402000, 8541402000
Viewing Angle 38 °
Voltage Rating 2.1 V
Wavelength 565 nm
Width 5.08 mm
Win Source Part Number 1222701-570-0100-132F
Categories Optics - LEDs - Light Pipes
Manufacturer Dialight
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 570-0100-132F CAD Model

Description

The 570-0100-132F is a light pipe manufactured by Dialight.

  • Housing Color: Black
  • Lens Style: Diffused
  • Voltage Rating: 2.1V
  • Forward Voltage: 2.2V
  • Luminous Intensity: 10mcd
  • Viewing Angle: 38 degrees
  • Supply and Demand Status: Limited
  • Applications: Optics, LEDs, and light pipes
