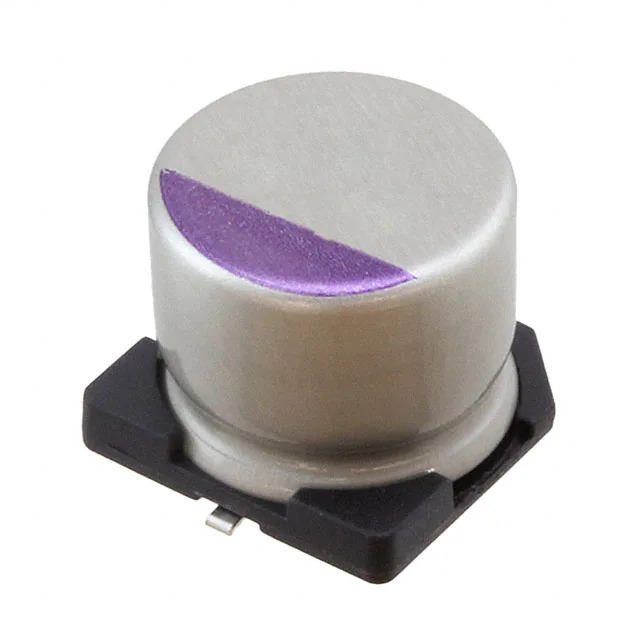

63SXV68M Panasonic
Same model may have multiple batches, images only for reference.

63SXV68M

Part No 63SXV68M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 68UF 20% 63V SMD / 68 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SXV
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 25mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 51.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.03 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 63SXV
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359536-63SXV68M
Ultra Librarian 3D Model Ultra Librarian 63SXV68M CAD Model

Description

The 63SXV68M is a polymer capacitor from Panasonic Electronic Components. Panasonic Electronic Components's 63SXV68M belongs to the OS-CON™, SXV series and comes in tape & reel packaging.

  • Series: OS-CON™, SXV
  • Packaging: Tape & Reel
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Base Product Number: 63SXV
  • Capacitance: 68 µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • ESR: 25mOhm
  • Lifetime: 1000 hours @ 125°C
  • Application: General Purpose
  • Diameter: 0.394 inches (10.00mm)
  • Height: 0.500 inches (12.70mm)
