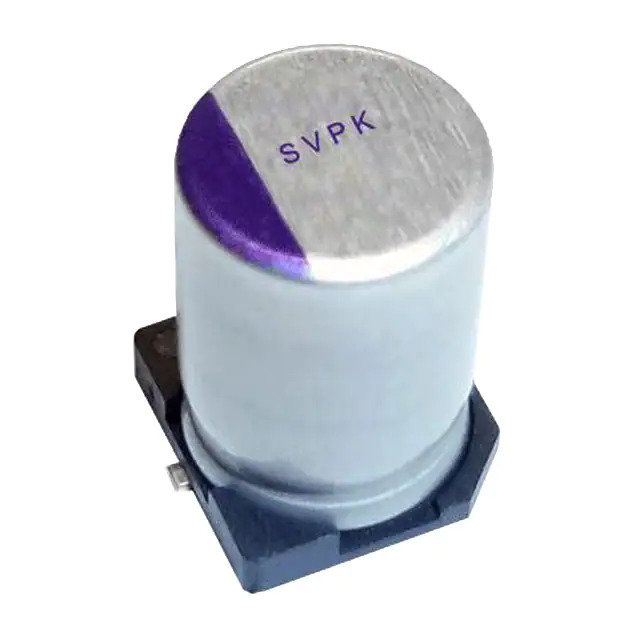

Same model may have multiple batches, images only for reference.

35SVPK22M

Name: 35SVPK22M
Brand: Panasonic
SKU: 1359542
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	35SVPK22M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 22UF 20% 35V SMD / 22 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPK
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	35mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	41 mA @ 120 Hz
Ripple Current @ High Frequency	820 mA @ 100 kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	35SVPK
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359542-35SVPK22M
Ultra Librarian 3D Model	Ultra Librarian 35SVPK22M CAD Model

Description

The 1359542-35SVPK22M is a polymer capacitor manufactured by Panasonic Electronic Components.

Series: OS-CON™ SVPK
Capacitance: 22μF
Tolerance: ±20%
Voltage Rating: 35V
Equivalent Series Resistance (ESR): 35mOhm
Temperature Range: -55°C to 125°C
Package: Radial, Can - SMD
Mounting Type: Surface Mount
Size: 0.197" Dia (5.00mm)
Height: 0.236" (6.00mm)
REACH: Meets requirements
ECCN: EAR99
