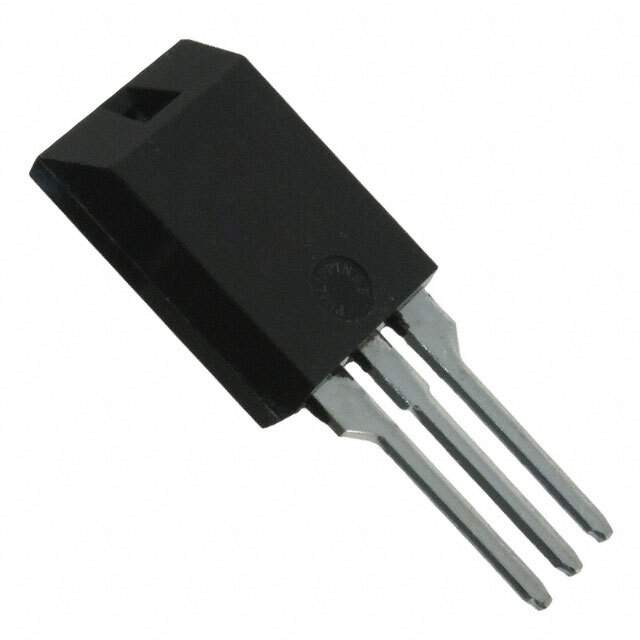

DPG30P300PJ Real Image
Same model may have multiple batches, images only for reference.

DPG30P300PJ

Part No DPG30P300PJ
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY 300V 30A ISOPLUS220 / Diode Array 1 Pair Series Connection 300 V 30A Through Hole ISOPLUS220™
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr IXYS
Series HiPerFRED²™
Package Tube
Diode Configuration 1 Pair Series Connection
Technology Standard
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.28 V @ 30 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 µA @ 300 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case ISOPLUS220™
Supplier Device Package ISOPLUS220™
Base Product Number DPG30P300
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 1349686-DPG30P300PJ
Ultra Librarian 3D Model Ultra Librarian DPG30P300PJ CAD Model

Description

The HiPerFRED²™ series diode array, model number DPG30P300PJ, is a standard recovery diode with a reverse leakage current of 1 µA @ 300 V.

  • Diode Configuration: 1 pair series connection
  • Maximum DC Reverse Voltage: 300 V
  • Maximum Forward Voltage: 1.28 V @ 30 A
  • Operating Temperature Range: -55°C to 175°C
  • Package Type: ISOPLUS220™
  • Supplier Device Package: ISOPLUS220™
  • Product Compliance: EAR99 and REACH unaffected
  • Application: Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
