Same model may have multiple batches, images only for reference.

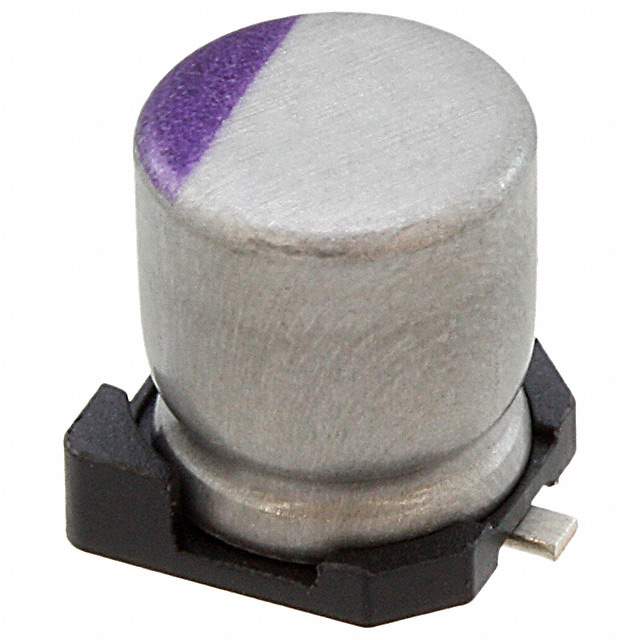

20SVPF56MX Real Image
Same model may have multiple batches, images only for reference.

20SVPF56MX

Part No 20SVPF56MX
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 56UF 20% 20V SMD  /  56 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPF
Package Tape & Reel
Type Polymer
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 2.8 A @ 100 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 20SVPF
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16502DKR,P16502CT,P16502TR,2266-20SVPF56MX
Standard Package 1,500
Win Source Part Number 1139360-20SVPF56MX
Ultra Librarian 3D Model Ultra Librarian 20SVPF56MX CAD Model

Description

This Panasonic Electronic Components capacitor is a part of the OS-CON™ SVPF series and has a capacitance of 56 µF with a voltage rating of 20 V. OS-CON™ SVPF capacitor is manufactured by Panasonic Electronic Components.

  • Series: OS-CON™ SVPF
  • Capacitance: 56 µF
  • Voltage Rating: 20 V
  • ESR: 30mOhm
  • Application: General-Purpose
  • Mounting Type: Surface Mount
  • Package: Radial, Can
  • Diameter: 0.197 inches (5.00mm)
  • Height: 0.236 inches (6.00mm)
  • Ripple Current (Low Frequency): 140 mA @ 120 Hz
  • Ripple Current (High Frequency): 2.8 A @ 100 kHz
  • Lifetime: 5000 hours @ 105°C
  • Operating Temperature: -55°C to 105°C
  • Package Quantity: 1500 capacitors
  • ROHS3 Compliant: Yes
