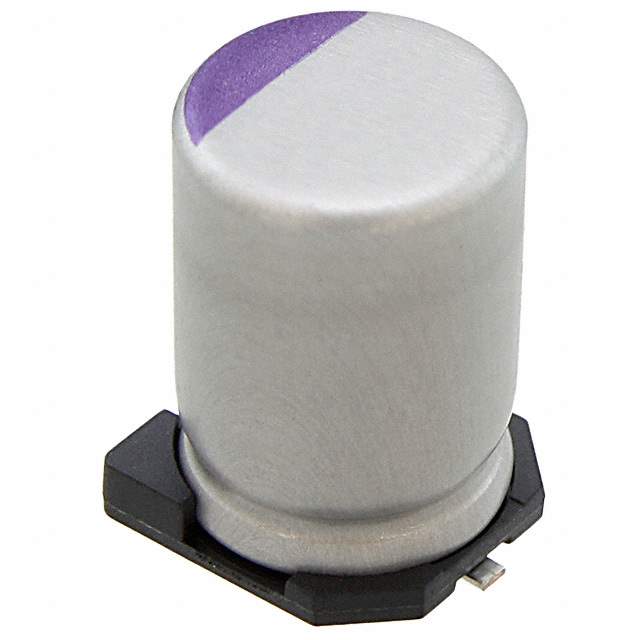

16SVPF560M Real Image
Same model may have multiple batches, images only for reference.

16SVPF560M

Part No 16SVPF560M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 16V SMD  /  560 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 14mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPF
Package Tape & Reel
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 247.5 mA @ 120 Hz
Ripple Current @ High Frequency 4.95 A @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 16SVPF
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16481CT,P16481DKR,P16481TR
Standard Package 400
Win Source Part Number 1034928-16SVPF560M
Ultra Librarian 3D Model Ultra Librarian 16SVPF560M CAD Model

Description

The Panasonic 1034928-16SVPF560M is a polymer aluminum capacitor with a capacitance of 560 µF and a voltage rating of 16 V.

  • Manufacturer: Panasonic
  • Win Source Part Number: 1034928-16SVPF560M
  • Series: OS-CON™, SVPF
  • Height: 0.472" (12.00mm)
