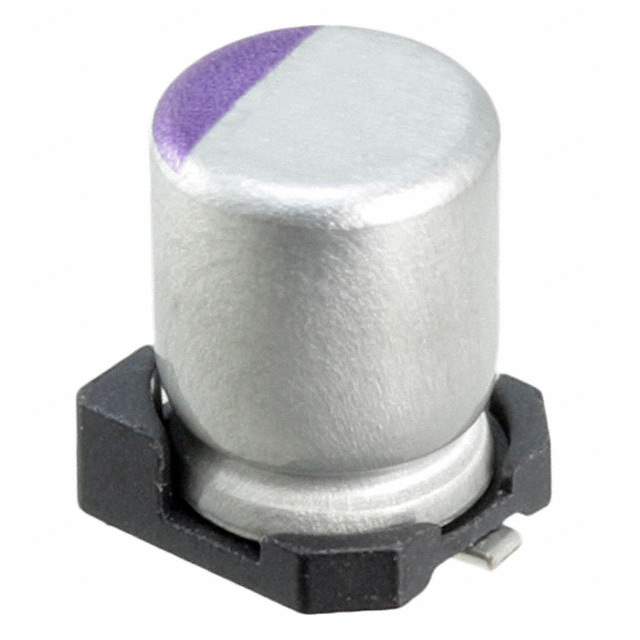

Same model may have multiple batches, images only for reference.

16SVP3R3M

Name: 16SVP3R3M
Brand: Panasonic
SKU: 415969
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	16SVP3R3M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 3.3UF 20% 16V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Status	Active
Type	Polymer
Capacitance	3.3μF
Tolerance	±20%
Voltage Rating	16V
ESR	260 mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C to 105°C
Ripple Current - Low Frequency	33mA @ 120Hz
Ripple Current - High Frequency	660mA @ 100kHz
Height - Seated (Max)	0.217" (5.50mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting	SMD (SMT)
Dimension	Radial, Can - SMD
Win Source Part Number	1001673-16SVP3R3M
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	2k pcs
Ultra Librarian 3D Model	Ultra Librarian 16SVP3R3M CAD Model

Description

This electronic component is a capacitor manufactured by Panasonic Electronic Components.

Voltage Rating: 16V
Capacitance: 3.3μF
Tolerance: ±20%
Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
Operating Temperature: -55°C to 105°C
Style: radial, can - SMD
Ripple Current: 33mA @ 120Hz (low frequency) and 660mA @ 100kHz (high frequency)
