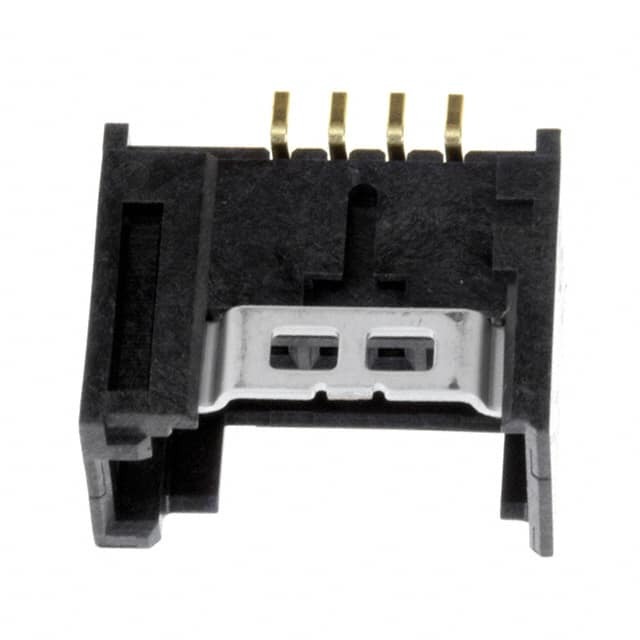

Same model may have multiple batches, images only for reference.

37204-12E0-004 PL

Name: 37204-12E0-004 PL
Brand: 3M
SKU: 855816
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	37204-12E0-004 PL
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN RCPT 4P 0.079 GOLD SMD R/A / 4 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	3M
Series	Mini-Clamp I, 372
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Cable/Wire
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Insulation Color	Black
Insulation Height	0.303" (7.70mm)
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	3A
Voltage Rating	32V
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Copper Alloy
Contact Finish Thickness - Post	Flash
Base Product Number	37204
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	855816-37204-12E0-004 PL
Ultra Librarian 3D Model	Ultra Librarian 37204-12E0-004 PL CAD Model

Description

The 855816-37204-12E0-004 PL is a female socket connector from the Mini-Clamp I series by 3M.

Type: Rectangular Connector
Positions: 4
Pitch: 0.079 inches (2.00mm)
Termination: Solder
Fastening Type: Latch Holder
Voltage Rating: 32V
Current Rating: 3A
Applications: Automotive, General Purpose, Industrial, Lighting, Medical
Contact Material: Copper Alloy
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Mounting Type: Surface Mount, Right Angle
Flammability Rating: UL94 V-0
