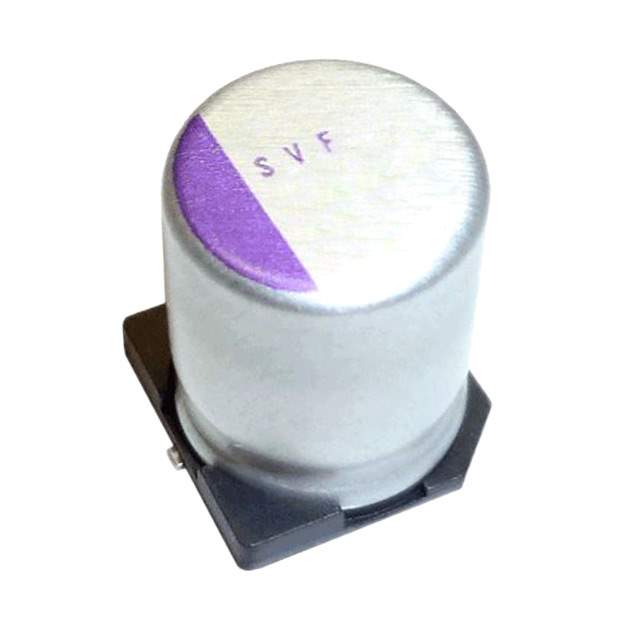

Same model may have multiple batches, images only for reference.

16SVF1000M

Name: 16SVF1000M
Brand: Panasonic
SKU: 972857
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16SVF1000M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 1000UF 20% 16V SMD / 1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 12mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVF
Package	Tape & Reel
Type	Polymer
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	12mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Applications	General Purpose
Ripple Current @ Low Frequency	85 mA @ 120 Hz
Ripple Current @ High Frequency	1.7 A @ 100 kHz
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	16SVF
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P122118CT,P122118TR,P122118DKR
Standard Package	400
Win Source Part Number	972857-16SVF1000M
Ultra Librarian 3D Model	Ultra Librarian 16SVF1000M CAD Model

Description

The 972857-16SVF1000M is a high-quality aluminum-polymer capacitor that is designed to provide high performance and reliability.

Series: OS-CON SVF
Capacitance: 1000 µF
Voltage: 16 volts
