Same model may have multiple batches, images only for reference.

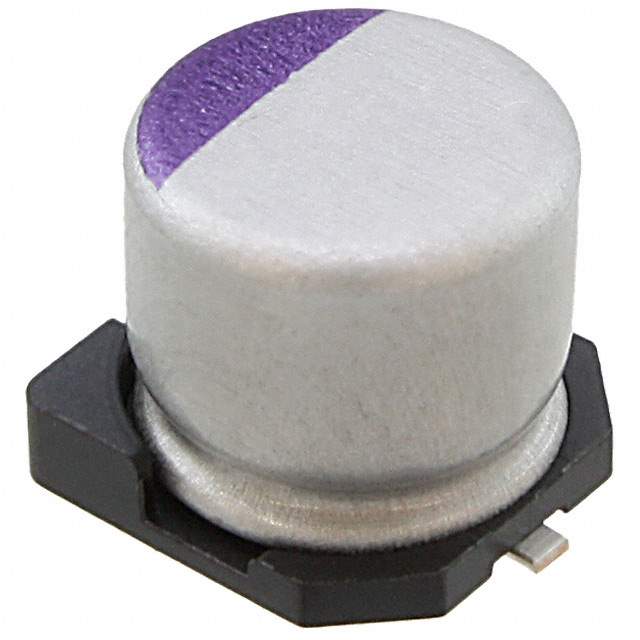

25SVPF56M Real Image
Same model may have multiple batches, images only for reference.

25SVPF56M

Part No 25SVPF56M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description Surface Mount Type | CAP ALUM POLY 56UF 20% 25V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 56μF
Tolerance ±20%
Voltage - Rated 25V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 140mA at 120Hz
Ripple Current at High Frequency 2.8A at 100kHz
Parts Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123386-25SVPF56M
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 25SVPF56M CAD Model

Description

The Panasonic Electronic Components 56μF Polymer Capacitor is a high-quality, general-purpose capacitor suitable for a range of applications.

  • Voltage Rating: 25V
  • Capacitance: 56μF
  • Tolerance: ±20%
  • ESR: 30mOhm
  • Ripple Current @ Low Frequency: 140mA @ 120Hz
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height: 0.236" (6.00mm)
  • Diameter: 0.248" (6.30mm)
  • Temperature Range: -55°C to 105°C
  • Lifetime: 5000 hours @ 105°C
