Same model may have multiple batches, images only for reference.

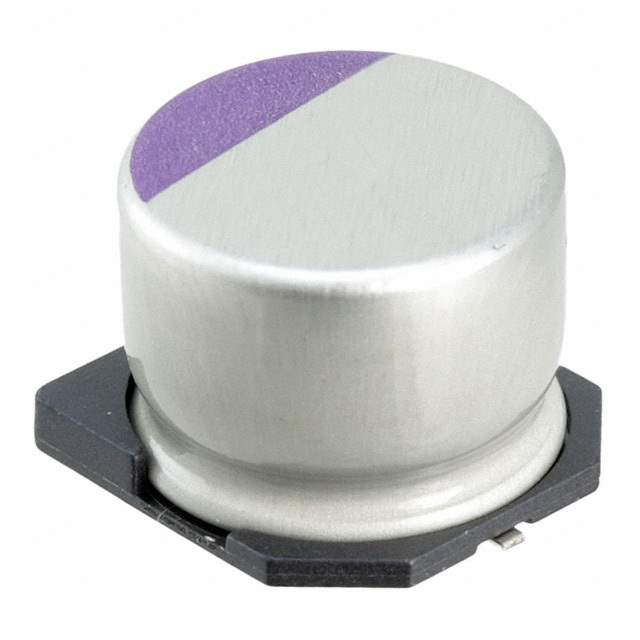

10SVP330MX Real Image
Same model may have multiple batches, images only for reference.

10SVP330MX

Part No 10SVP330MX
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 330UF 20% 10V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series OS-CON, SVP
Packaging Reel package
Type Polymer
Capacitance 330μF
Tolerance ±20%
Voltage Rating 10V
ESR (Equivalent Series Resistance) 25 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - Low Frequency 185mA @ 120Hz
Ripple Current - High Frequency 3.7A @ 100kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.315" (8.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 760174-10SVP330MX
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name SVP
Introduction Date October 02, 2002
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 10SVP330MX CAD Model

Description

The OS-CON SVP 10SVP330MX is a polymer capacitor from Panasonic Electronic Components.

  • Capacitance: 330μF
  • Tolerance: ±20%
  • Voltage Rating: 10V
  • ESR (Equivalent Series Resistance): 25 mOhm
  • Lifetime: 2000 hours @ 105°C
  • Mounting: SMD
  • Ripple Current (Low Frequency): 185mA @ 120Hz
  • Ripple Current (High Frequency): 3.7A @ 100kHz
  • Surface Mount Land Size: 0.406 inches (10.30mm) (Length and Width), 0.315 inches (8.00mm) (Height)
  • Category: Capacitors
  • Popularity: Medium
  • Package Quantity: 500
  • Introduction Date: October 02, 2002
  • EOL Date: 2026 (Estimated)
  • Halogen Free: Compliant
