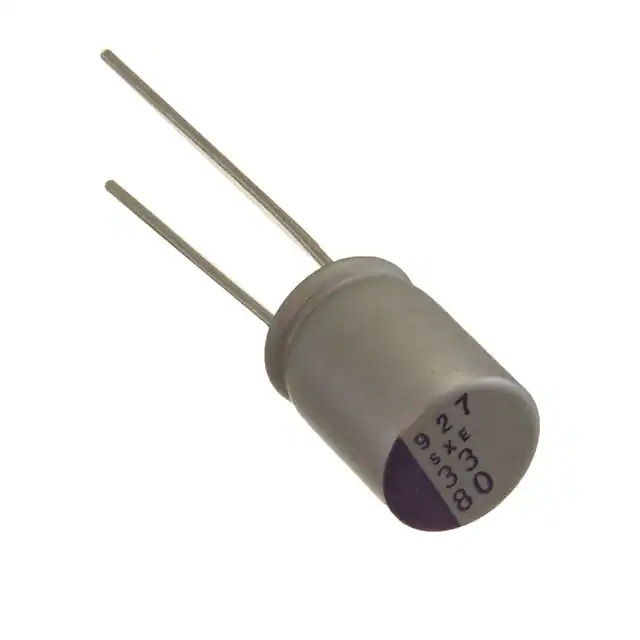

Same model may have multiple batches, images only for reference.

100SXE22M

Name: 100SXE22M
Brand: Panasonic
SKU: 1359578
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	100SXE22M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 22UF 20% 100V T/H / 22 µF 100 V Aluminum - Polymer Capacitors Radial, Can 30mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SXE
Package	Bulk
Product Status	Active
Type	Polymer
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	30mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	150 mA @ 120 Hz
Ripple Current @ High Frequency	3 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	100SXE
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359578-100SXE22M
Ultra Librarian 3D Model	Ultra Librarian 100SXE22M CAD Model

Description

The 100SXE22M is an aluminum polymer capacitor from Panasonic Electronic Components' OS-CON™, SXE series.

Packaging: Bulk
Mounting Type: Through-Hole
Capacitance: 22µF
Tolerance: ±20%
Voltage Rating: 100V
Equivalent Series Resistance (ESR): 30mOhm
Operating Temperature: -55°C to 125°C
Lifetime: 1000 hours @ 125°C
Size: 0.394" Diameter (10.00mm), 0.512" Height (13.00mm)
