Same model may have multiple batches, images only for reference.

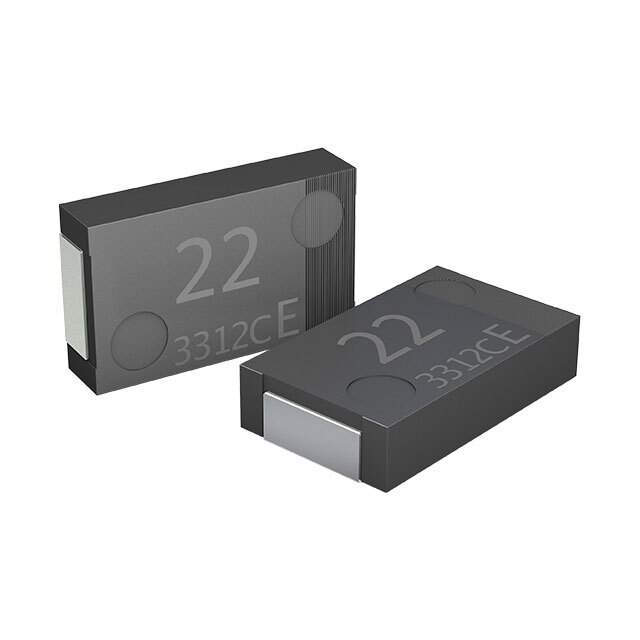

EEF-SR0J680R Real Image
Same model may have multiple batches, images only for reference.

EEF-SR0J680R

Part No EEF-SR0J680R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 68UF 20% 6.3V SMD  /  68 µF 6.3 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 9mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap, SR
Package Tape & Reel
Type Polymer
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 6.3 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.039" (1.00mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-SR
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEFSR0J680R,PCE5105TR,PCE5105DKR,PCE5105CT
Standard Package 3,500
Win Source Part Number 986703-EEF-SR0J680R
Ultra Librarian 3D Model Ultra Librarian EEF-SR0J680R CAD Model

Description

The Panasonic Electronic Components EEF-SR0J680R is a 68 µF polymer capacitor with a voltage rating of 6.3 V and a capacitance tolerance of ±20%. It has an ESR (Equivalent Series Resistance) of 9mOhm and a lifetime of 2000 Hrs @ 105°C. The capacitor has a surface mount land size of 0.287" L x 0.169" W (7.30mm x 4.30mm) and is mounted in an SMD (SMT) package. It has a temperature range of -55°C to 105°C and is ideal for use in aluminum-polymer capacitor applications.
