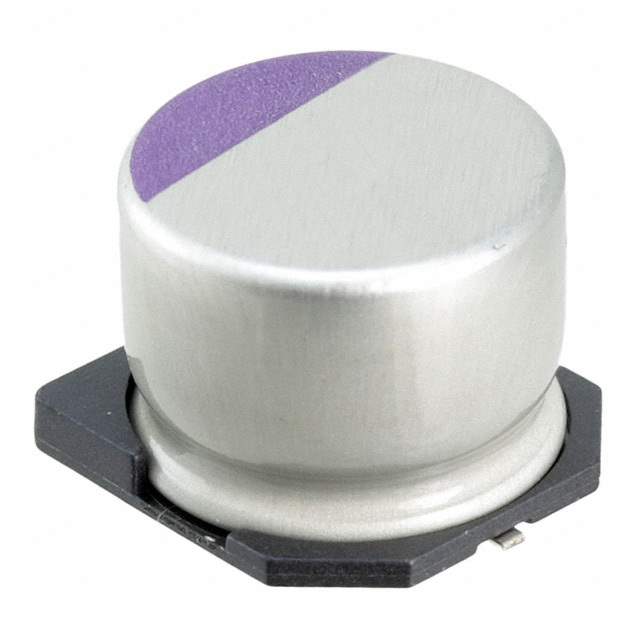

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVP
Package Tape & Reel
Type Polymer
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 4 V
ESR (Equivalent Series Resistance) 25mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 185 mA @ 120 Hz
Ripple Current @ High Frequency 3.7 A @ 100 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 4SVP
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16569TR,P16569DKR,P16569CT
Standard Package 500
Win Source Part Number 961946-4SVP680M
Ultra Librarian 3D Model Ultra Librarian 4SVP680M CAD Model

Description

The Panasonic Electronic Components 961946-4SVP680M is a polymer type capacitor that belongs to the OS-CON™ SVP series.

  • Series: OS-CON™ SVP
  • Type: Polymer
  • Application: General-Purpose
  • Packaging: Tape and Reel
  • Capacitance: 680 µF
  • Voltage Rating: 4V
  • Tolerance: ±20%
  • ESR: 25mOhm
  • Lifetime: 2000 hours @ 105°C
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Package: Radial, Can-SMD
  • Temperature Range: -55°C to 105°C
  • Ripple Current (Low Frequency): 185 mA @ 120 Hz
  • Ripple Current (High Frequency): 3.7 A @ 100 kHz
