Products specifications

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Oupiin
Series 9001
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 64
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style B
Mounting Type Through Hole
Termination Solder
Features -
Contact Finish Gold
Contact Finish Thickness Flash
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number 9001
MSL Level 2 (1 Year)
HTSUS 8536.69.4040
Win Source Part Number 1364449-9001-32641C00A
Ultra Librarian 3D Model Ultra Librarian 9001-32641C00A CAD Model

Description

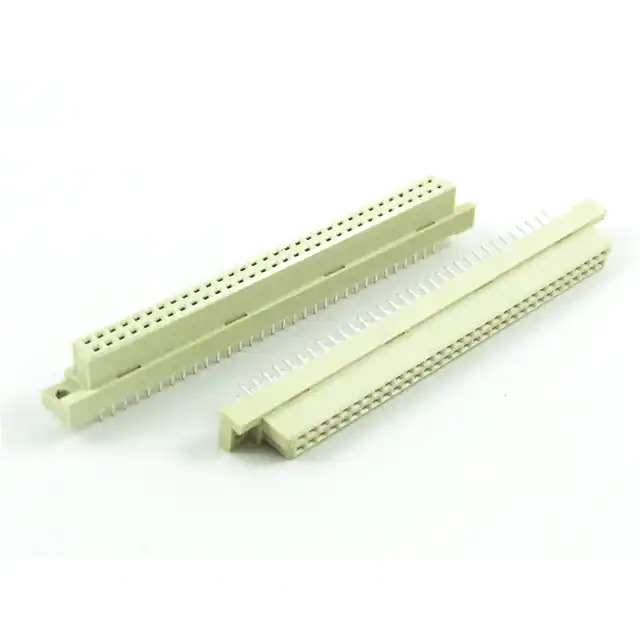

The 9001 series DIN 41612 backplane connector is a high-quality component designed for reliable interconnection in electronic systems. Manufactured by Oupiin, this connector features a through-hole mounting type, making it easy to install on circuit boards.

  • Mounting Type: Through-Hole
  • Current Rating: 2A
  • Contact Finish: Gold
  • Positions: 64
  • Rows: 2
  • Positions Loaded: All
  • Termination Style: Solder
  • Material Flammability Rating: UL94 V-0
  • Pitch: 0.100 inches (2.54mm)
  • Material Insulation: Polybutylene Terephthalate (PBT)
