Products specifications

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Oupiin
Series 9001
Package Tray
Product Status Active
Connector Type Header, Male Pins
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style R/2 (1/2 R)
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number 9001
Standard Package 216 pcs
MSL Level 2 (1 Year)
HTSUS 8536.69.4040
Win Source Part Number 858564-9001-17481C00A
Ultra Librarian 3D Model Ultra Librarian 9001-17481C00A CAD Model

Description

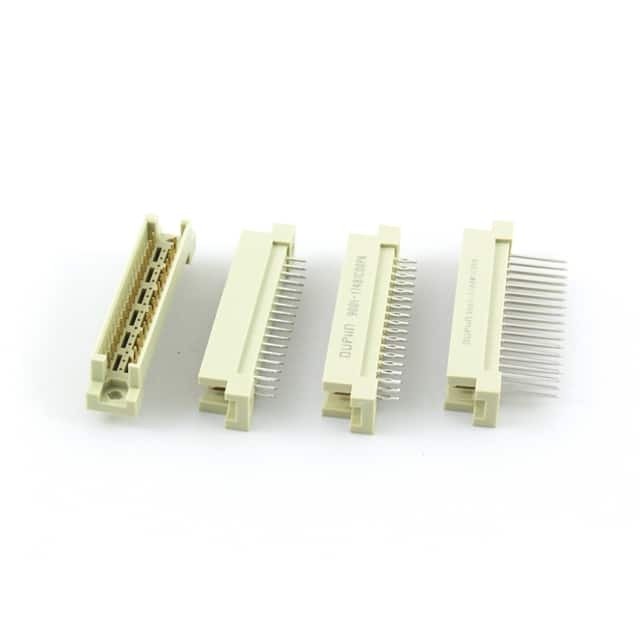

The 858564-9001-17481C00A is a backplane connector from Oupiin.

  • Series: 9001
  • Positions: 48
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Header, Male Pins
  • Positions Loaded: All
  • Rows: Three
  • Termination Style: Solder
  • Contact Finish: Gold
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Mounting: Through Hole
  • Temperature Range: -55°C to 125°C
  • Current Rating: 2A
  • Package: Tray
  • Standard Package: 216 pcs
