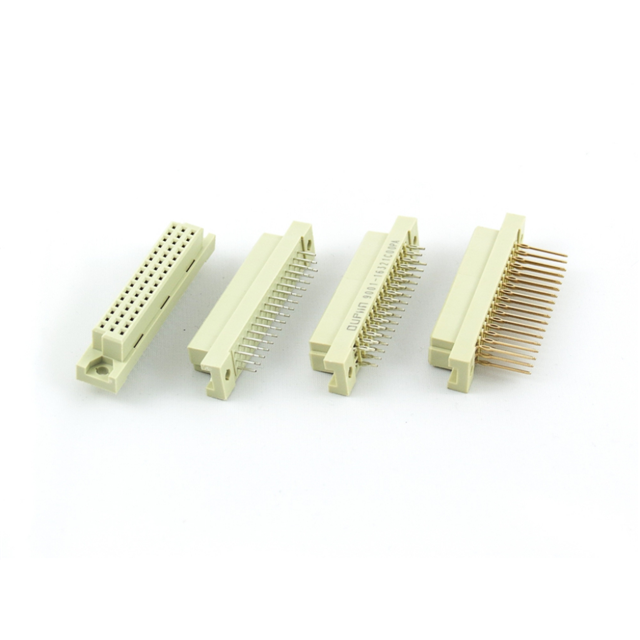

9001-16481C00A Real Image
Same model may have multiple batches, images only for reference.

9001-16481C00A

Part No 9001-16481C00A
Manufacturer Oupiin
Catalog Backplane Connectors
Description DIN41612, FEMALE, HALF C TYPE, 4 / 48 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr Oupiin
Series 9001
Package Tray
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number 9001
MSL Level 2 (1 Year)
HTSUS 8536.69.4040
Other Names 2553-9001-16481C00A
Standard Package 216
Win Source Part Number 1179607-9001-16481C00A
Ultra Librarian 3D Model Ultra Librarian 9001-16481C00A CAD Model

Description

The Oupiin 9001 Series is a DIN 41612 connector with a C/2 (1/2 C) style receptacle and female sockets.

  • Pitch: 0.100-inch (2.54mm)
  • Contact Finish Thickness: Gold Flash
  • Flammability Rating: UL94 V-0
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 2A
  • Mounting Type: Through-Hole
  • Packaging: Tray
  • Standard Package: 216 pieces
