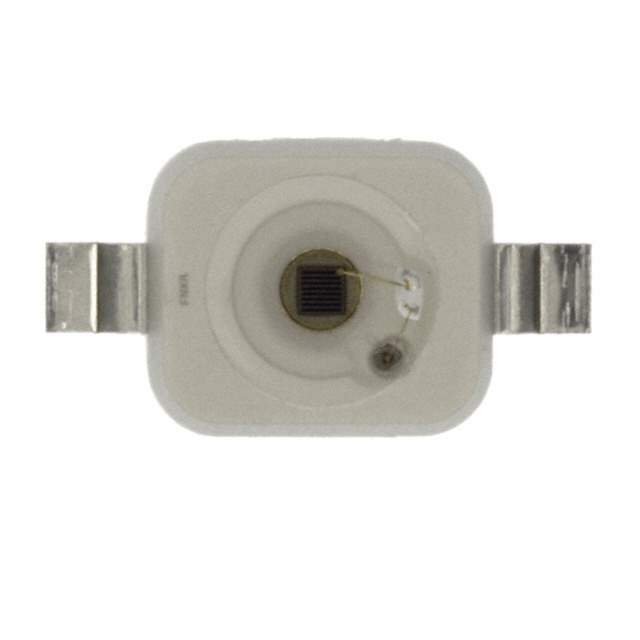

SFH 4230-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 4230-Z

Part No SFH 4230-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 850NM HI POWER SMD / Infrared (IR) Emitter 850nm 1.8V 1A 250mW/sr @ 1A 120° 2-SMD, Gull Wing
Datasheet
SFH 4230-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Cut Tape (CT),
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 1A
Radiant Intensity (Ie) Min @ If 250mW/sr @ 1A
Wavelength 850nm
Voltage - Forward (Vf) (Typ) 1.8V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting SMD (SMT)
Package / Case 2-SMD, Gull Wing
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 475-1253-1,475-1253-2,Q3203750,SFH4230-Z,Q65110A4023,SFH4230Z,475-1253-6
Standard Package 800
Win Source Part Number 1201841-SFH 4230-Z
Ultra Librarian 3D Model Ultra Librarian SFH 4230-Z CAD Model

Description

The SFH 4230-Z is an infrared LED emitter designed for use in electronic applications.

  • Manufacturer: ams-OSRAM
  • Product Name: SFH 4230-Z
  • Viewing Angle: 120°
  • Wavelength: 850nm
  • Package: Cut Tape (CT)
  • Mounting Type: SMD (SMT)
  • Radiant Intensity (Ie) @ Current: 250mW/sr @ 1A
  • Voltage Forward (Vf): 1.8V
  • Status: Obsolete
  • Popularity: Low
  • ECCN: EAR99
