Same model may have multiple batches, images only for reference.

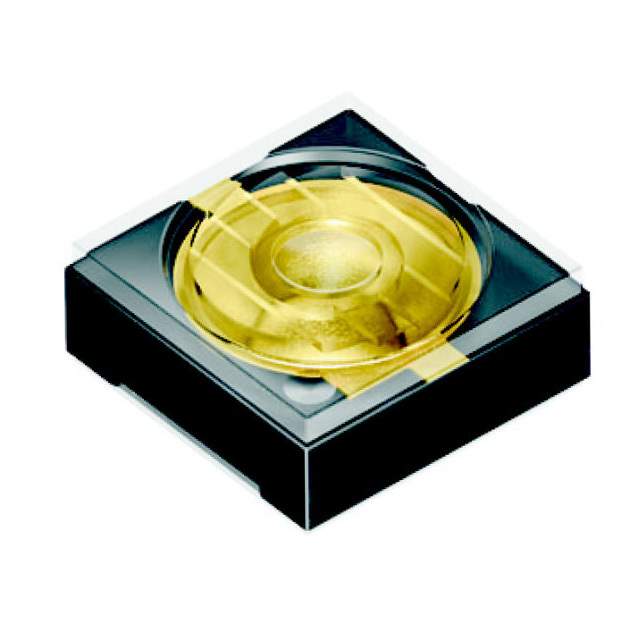

SFH 4786S Real Image
Same model may have multiple batches, images only for reference.

SFH 4786S

Part No SFH 4786S
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description OSLUX / Infrared (IR) Emitter 820nm 3.3V 500mA 1250mW/sr @ 1A 30° 1414 (3535 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Series OSLUX
Package Tape & Reel
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 500mA
Radiant Intensity (Ie) Min @ If 1250mW/sr @ 1A
Wavelength 820nm
Voltage - Forward (Vf) (Typ) 3.3V
Viewing Angle 30°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Other Names 475-3529-6,SFH 4786S,475-3529-2,475-3529-1,Q65111A8571
Standard Package 2,500
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242421-SFH 4786S
Ultra Librarian 3D Model Ultra Librarian SFH 4786S CAD Model

Description

The OSLUX series infrared (IR) LED emitter is a high-performance electronic device designed for use in optoelectronics applications.

  • Component: surface mounted on a 1414 (3535 metric) package/case with a top view orientation
  • Current-DC Forward (If) (max): 500mA
  • Viewing Angle: 30°
  • Voltage-Forward (Vf) (typ): 3.3V
  • Wavelength: 820nm
  • Radiant Intensity (Ie) min @ If: 1250mW/sr @ 1A
  • Temperature Range: -40°C to 85°C (TA)
  • Manufacturer: ams-OSRAM USA Inc.
  • Status: obsolete
