Same model may have multiple batches, images only for reference.

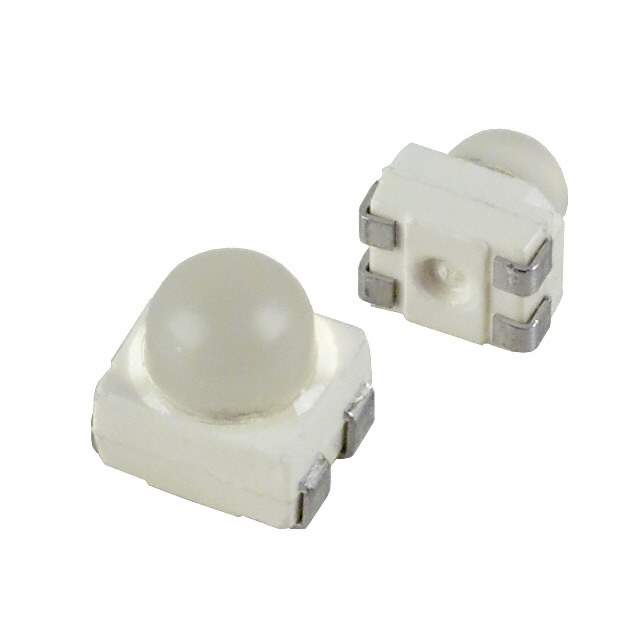

LA E63B-CBEA-24-1-50-R33-Z Real Image
Same model may have multiple batches, images only for reference.

LA E63B-CBEA-24-1-50-R33-Z

Part No LA E63B-CBEA-24-1-50-R33-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series Power TOPLED® with Lens
Package Tape & Reel
Product Status Last Time Buy
Color Amber
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Lens Style Round with Domed Top
Lens Size 2.60mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 50mA
Viewing Angle 30°
Mounting SMD (SMT)
Wavelength - Dominant 617nm
Wavelength - Peak 624nm
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 3.80mm
Base Product Number LAE63B
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315936-LA E63B-CBEA-24-1-50-R33-Z
Ultra Librarian 3D Model Ultra Librarian LA E63B-CBEA-24-1-50-R33-Z CAD Model

Description

The Power TOPLED® with Lens is an optoelectronic electronic component with an amber color and a clear lens transparency.

  • Viewing Angle: 30 degrees
  • Voltage-Forward: 2.2V (Typ)
  • Current Test: 50mA
  • Wavelength-Dominant: 617nm
  • Peak Wavelength: 624nm
  • Height: 3.80mm
  • Package/Case: 4-PLCC
  • Lens Style: Round with Domed Top
  • Lens Size: 2.60mm diameter
  • Mounting Type: SMD (SMT)
  • Configuration: Standard
  • Supplier: ams-OSRAM USA Inc.
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
  • Product Status: Last Time Buy
