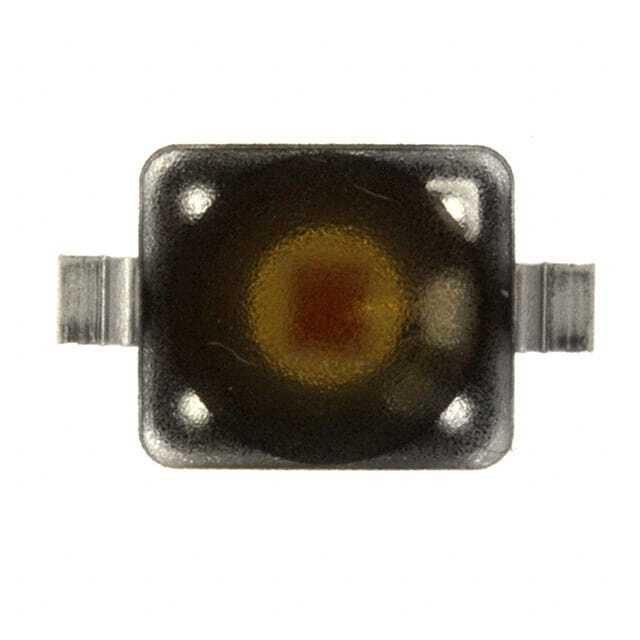

Same model may have multiple batches, images only for reference.
LR W5AP-KZMX-1-Z
Same model may have multiple batches, images only for reference.

LR W5AP-KZMX-1-Z

Part No LR W5AP-KZMX-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - Color
Description LED DIAMOND DRAGON 625NM RED
Datasheet
LR W5AP-KZMX-1-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Features LED Lighting Color series Red 625nm (Typ) 3026 (7767 Metric)
Manufacturer OSRAM Opto Semiconductors Inc.
Series Diamond Dragon
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
Package 3026 (7767 Metric)
Case / Package SMD
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number 475-2581-2, 475-2581-1, LRW5APKZMX1Z, Q65110A7158, LR W5AP-KZMX-1-0-A40-R18-Z, 475-2581-6
Quantity per package 200
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 878237-LR W5AP-KZMX-1-Z
Ultra Librarian 3D Model Ultra Librarian LR W5AP-KZMX-1-Z CAD Model

Description

The Diamond Dragon is a LED Lighting Color series Red 625nm (Typ) 3026 (7767 Metric) electronic component from OSRAM Opto Semiconductors Inc.

  • Series: Diamond Dragon
  • Color: Red 625nm (Typ)
  • Package / Case: 3026 (7767 Metric)
  • Mounting Type: Surface Mount
  • Packaging: Reel - TR
  • Quantity Per Package: 200 pcs
  • Category: Optoelectronics
  • Supply and Demand Status: Limited
  • REACH Status: REACH unaffected
