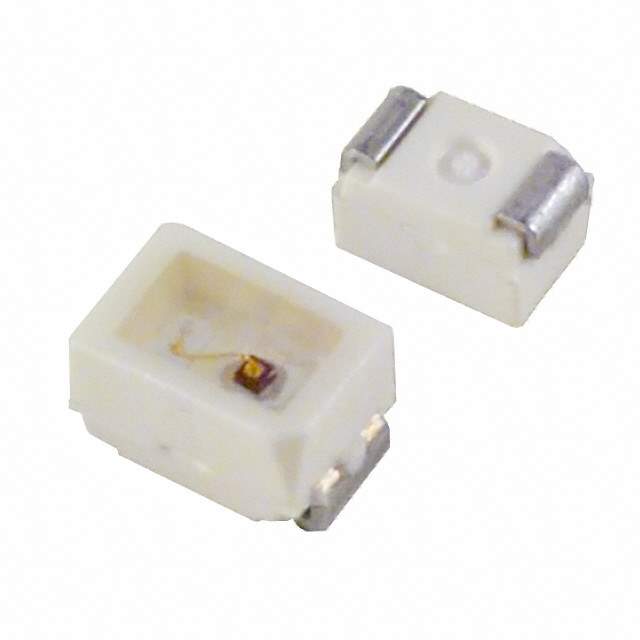

LP M676-L1M2-25 Real Image
Same model may have multiple batches, images only for reference.

LP M676-L1M2-25

Part No LP M676-L1M2-25
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description Opto LP M676-L1M2-25, Mini TOPLED SeriesGreen LED, 560 nm, Rectangle Lens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Green
Depth 1.5 mm
Dominant Wavelength 560 nm
Forward Current 30 mA
Forward Voltage 2.4 V
Height 1.3 mm
Length 2.1 mm
Lens Color Clear
Lens Style Colorless, Diffused, Rectangular
Luminous Flux 49.5 mlm
Luminous Intensity 15.7 mcd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Tape and Reel
Radiation Hardening No
Reverse Voltage 12 V
RoHS Compliant
Test Current 20 mA
Viewing Angle 120 °
Width 1.4 mm
Win Source Part Number 1070671-LP M676-L1M2-25
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LP M676-L1M2-25 CAD Model

Description

The OSRAM Opto Semiconductors Inc. 1070671-LP M676-L1M2-25 is a surface mount LED with a colorless, diffused, rectangular lens style and clear lens color.

  • Forward Voltage: 2.4 V
  • Forward Current: 30 mA
  • Category: alternative part (cross-reference)
  • Supply and Demand Status: shortage
  • Maximum Operating Temperature: 100 °C
  • Minimum Operating Temperature: -40 °C
  • RoHS Compliant: yes
