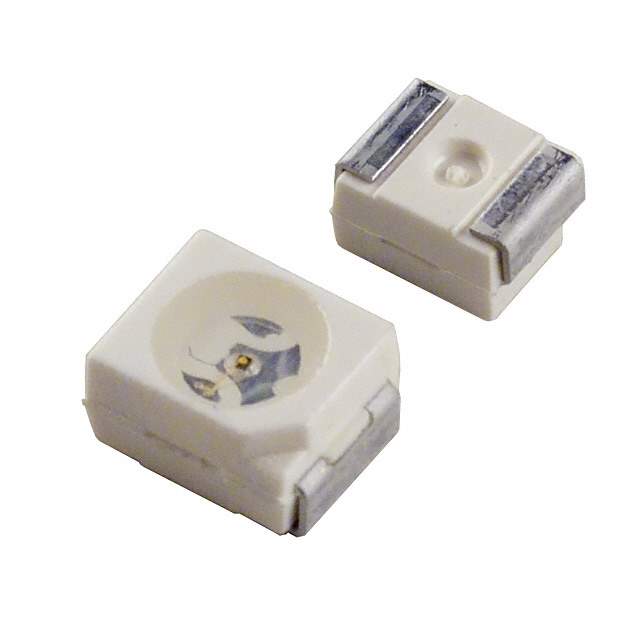

The LGT670-L1M2-1-Z is a green ThinGaN LED manufactured by OSRAM Opto Semiconductors. Similar to the LGT670-K1L2-1-Z, it leverages OSRAM's ThinGaN technology for enhanced light extraction and thermal management. This results in a high-performance LED suitable for applications demanding a bright, reliable green light source. The part number differentiates it through specific binning and performance characteristics compared to other LEDs in the LGT670 family.

Applications

• Traffic signals and signs.
• Automotive lighting (e.g., dashboard indicators, instrument panels).
• Backlighting for LCD displays, especially in automotive and industrial applications.
• Indoor and outdoor signage and displays.
• Medical and scientific instrumentation.
• Entertainment and architectural lighting.

Features

• High Luminous Intensity: Optimized for bright green light output for clear visibility.
• ThinGaN Technology: Enhanced light extraction efficiency and improved thermal management.
• Extended Operating Lifespan: Designed for long-term reliability in demanding environments.
• Compact and Robust Package: Suitable for surface mounting and automated assembly.
• Wide Viewing Angle: Provides uniform light distribution across a broad area.
• Low Forward Voltage: Contributes to energy efficiency and reduced power consumption.

Benefits

• Superior Visibility: The bright green light ensures clear and immediate recognition, even under adverse conditions.
• Consistent and Reliable Performance: The long lifespan and stable light output minimize downtime and maintenance.
• Reduced Energy Consumption: Low power requirements contribute to energy savings and reduced operational costs.
• Simplified Integration: The compact package allows for easy integration into existing designs.
• Minimized Maintenance Costs: Long lifespan reduces the frequency of replacements, leading to lower maintenance expenses.

Technical Specifications

The LGT670-L1M2-1-Z LED emits green light with a dominant wavelength around 525 nm. The typical forward voltage is around 3.2V, optimized for efficient operation at a forward current of approximately 20mA. Luminous intensity, measured in millicandelas (mcd), is a key characteristic, reflecting the perceived brightness. The viewing angle is typically 120 degrees, ensuring wide light dispersion. Operating temperature range typically spans from -40°C to +85°C, accommodating harsh environmental conditions. Thermal resistance of the package is carefully designed for efficient heat dissipation. Adherence to RoHS compliance ensures environmentally friendly operation, free from hazardous substances.
