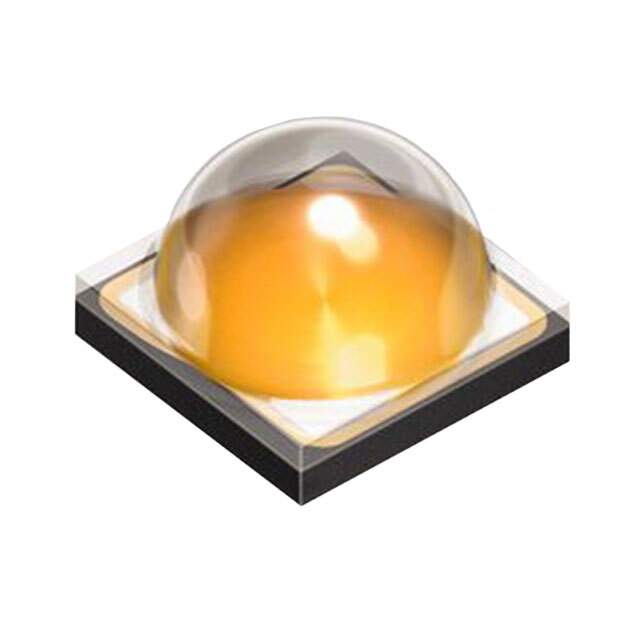

GW CSSRM2.PM-NPNR-A535-1-700-R18 Real Image
Same model may have multiple batches, images only for reference.

GW CSSRM2.PM-NPNR-A535-1-700-R18

Part No GW CSSRM2.PM-NPNR-A535-1-700-R18
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED OSLON SQ NEU WHT 4000K 2SMD
Datasheet
GW CSSRM2.PM-NPNR-A535-1-700-R18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer OSRAM Opto Semiconductors Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Color White, Neutral
CCT (K) 4000K
Flux @ 85°C, Current - Test 320 lm (280 lm to 359 lm)
Current - Test 700mA
Forward Voltage 2.8V
Lumens/Watt @ Current - Test 163 lm/W
CRI (Color Rendering Index) 70
Current - Max 1.8A
Viewing Angle 120°
Mounting SMD (SMT)
Case / Package SMD
Height - Seated (Max) 0.088" (2.24mm)
Thermal Resistance of Package 2.1°C/W
Win Source Part Number 1011473-GW CSSRM2.PM-NPNR-A535-1-700-R18
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GW CSSRM2.PM-NPNR-A535-1-700-R18 CAD Model

Description

The GW CSSRM2.PM-NPNR-A535-1-700-R18 is an electronic component manufactured by OSRAM Opto Semiconductors Inc..

  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Packaging: SMD
  • Light Color: White, Neutral
  • CCT: 4000K
  • Viewing Angle: 120°
  • Thermal Resistance of Package: 2.1°C/W
  • Lumens/Watt @ Current Test: 163 lm/W
  • CRI (color rendering index): 70
