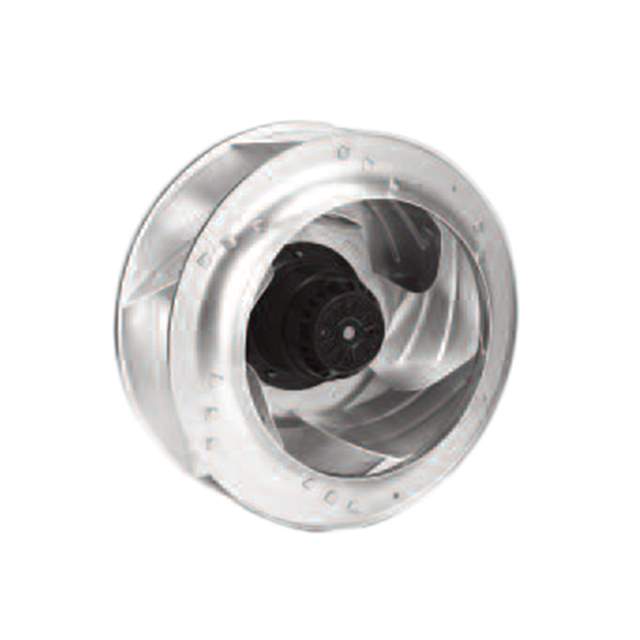

OAB360-22-1 Real Image
Same model may have multiple batches, images only for reference.

OAB360-22-1

Part No OAB360-22-1
Manufacturer Orion Fans
Catalog AC Fans
Description FAN IMP MTRZD 360X167 230V W/CAP / Fan Motorized Impellers 230VAC Round - 360mm Dia Ball 1645.0 CFM (46.06m³/min) 4 Wire Leads
Datasheet
OAB360-22-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>AC Fans
Mfr Orion Fans
Series OAB360
Package Box
Voltage - Rated 230VAC
Dimension Round - 360mm Dia
Width 167.3mm
Air Flow 1645.0 CFM (46.06m³/min)
Static Pressure 2.200 in H2O (548.0 Pa)
Bearing Type Ball
Fan Type Motorized Impellers
Features Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Noise 70.0dB
Power (Watts) 265W
RPM 1600 RPM
Termination 4 Wire Leads
Ingress Protection IP55 - Dust Protected, Water Resistant
Temperature Range - Operating -40 ~ 176°F (-40 ~ 80°C)
Approval Agency cURus, TUV
Current Rating (Amps) 1.20A
Voltage Range 200 ~ 240VAC
Material - Frame Aluminum
Material - Blade Metal
Lifetime @ Temp. 40000 Hrs @ 40°C
Base Product Number OAB360
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6560
Other Names 1053-1698,OAB360-22-1X
Standard Package 1
Win Source Part Number 1159447-OAB360-22-1
Ultra Librarian 3D Model Ultra Librarian OAB360-22-1 CAD Model

Description

The OAB360-22-1 AC fan from Orion Fans is a high-performance fan designed for thermal management in electronic devices.

  • Motor: Permanent Split Capacitor
  • Protection: Thermal Overload Protector (TOP)
  • Leads: 4 Wire
  • Protection: Dust Protected and Water-Resistant
  • IP Rating: IP55
  • Rated Voltage: 230VAC
  • Power Rating: 265W
  • Lifetime: 40000 hours @ 40°C
  • Voltage Range: 200 ~ 240VAC
  • Width: 167.3mm
  • Diameter: 360mm
  • Air Flow: 1645.0 CFM
  • Static Pressure: 2.200 in H2O
  • Noise Level: 70.0dB
  • Speed: 1600 RPM
  • Frame: Aluminum
  • Blade: Metal
  • Temperature Range: -40 ~ 176°F
  • Approvals: cURus and TUV
