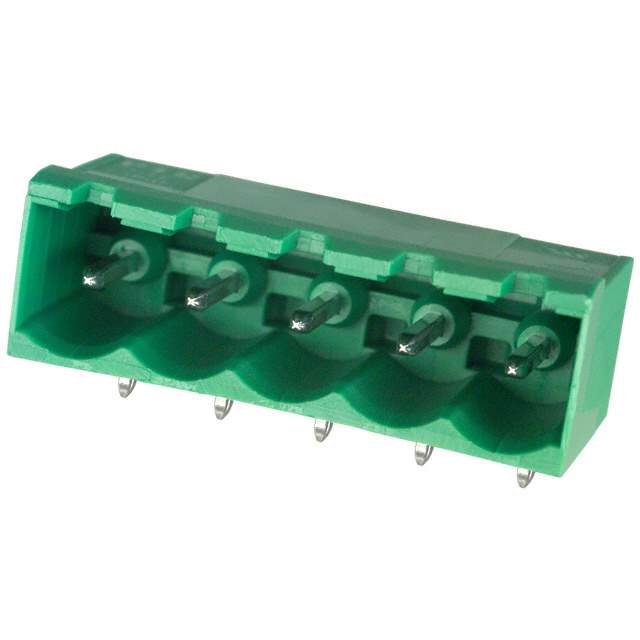

EDSTL950/5 Real Image
Same model may have multiple batches, images only for reference.

EDSTL950/5

Part No EDSTL950/5
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERM BLOCK HDR 5POS 90DEG 5MM
Datasheet
EDSTL950/5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Packaging Bulk
Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Positions Per Level 5
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation 90°, Right Angle
Mounting Solder
Voltage - UL 300V
Temperature Range - Operating -30°C to 105°C
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.138" (3.50mm)
Win Source Part Number 1032060-EDSTL950/5
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EDSTL950/5 CAD Model

Description

This header is a male pin with shrouded (4 side) type with 5 positions per level and a 0.197" (5.00mm) pitch and is manufactured by On Shore Technology Inc.

  • Header Orientation: 90° right angle
  • Mounting Style: solder
  • Voltage Rating: 300V
  • Housing Material: polyamide (PA) or nylon
  • Insulation Height: 0.138" (3.50mm)
  • Temperature Range: -30°C to 105°C
