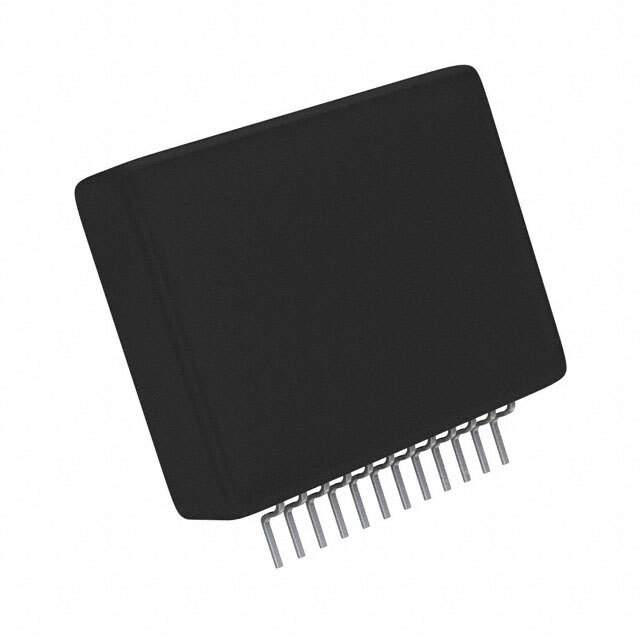

The STK672-340-E from ON Semiconductor is a unipolar 2-phase stepper motor driver hybrid IC, which incorporates a micro-stepping controller and power MOSFETs in a single package. This high-performance device is designed to deliver smooth and precise motor control in a wide range of applications, including office automation machines, factory automation systems, and home appliances.
Key Features:
- Integrated Micro-Stepping Controller: The IC includes an advanced micro-stepping controller that enables the motor to move in very small increments, allowing for fine position control.
- High Voltage and Current Rating: With an operating voltage range of 10V to 42V and an output current rating of up to 3A, the STK672-340-E can drive a broad spectrum of stepper motors.
- Low Heat Generation: The power MOSFETs are designed to minimize heat generation, which reduces the need for additional heat sinking and increases system reliability.
- Multiple Step Resolutions: The device supports full-step, half-step, quarter-step, and 1/8-step modes, providing flexibility in motor speed and torque management.
- Built-in Protection Features: The IC includes overcurrent protection, thermal shutdown, and under-voltage lockout to ensure safe operation under various conditions.
- Compact Package: The hybrid IC is packaged in a compact format, which saves space on the PCB and simplifies the design process.
Applications:
- 3D Printers
- CNC Machines
- Robotics
- Automated Guided Vehicles (AGVs)
- Surveillance Systems
- Office Equipment (e.g., Printers, Scanners)
The STK672-340-E is an ideal choice for designers looking for a robust, efficient, and easy-to-use stepper motor driver solution. Its comprehensive feature set and protection mechanisms ensure that it can deliver the performance required for precise motion control tasks, while also being durable and reliable in long-term operation.
