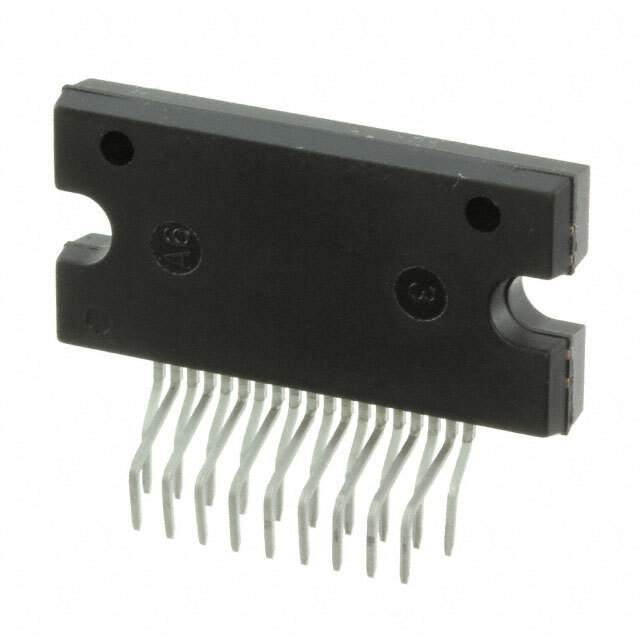

ON Semiconductor STK611-721-E Intelligent Power Module

The ON Semiconductor STK611-721-E is a highly sophisticated and efficient Intelligent Power Module (IPM) designed to cater to a wide range of motor drive applications. This compact module is part of the STK600 series, known for its reliability and performance in controlling small motor applications.

The STK611-721-E integrates power elements, gate drive, and protection circuitry in a single package, offering a complete solution for AC motor control. The power stage of the module consists of IGBTs (Insulated Gate Bipolar Transistors) that are well-suited for high-speed switching operations, making them ideal for inverter-based applications such as variable speed drives.

With a built-in overcurrent protection circuit, the STK611-721-E ensures safe operation under abnormal load conditions. This feature helps in preventing damage to the module and the motor it controls. Additionally, the module is equipped with an over-temperature protection circuit, which monitors the internal temperature and shuts down the IGBTs if it exceeds safe operating limits.

The gate drive circuitry within the STK611-721-E is designed to provide optimal gate voltage and current, ensuring efficient switching of the IGBTs. This results in reduced power losses and improved overall efficiency of the motor drive system. The module also includes a bootstrap diode for the high-side gate drive, simplifying the circuit design and reducing external component count.

With its compact SIP (Single Inline Package) design, the STK611-721-E allows for a reduced footprint on the PCB, making it a great choice for applications where space is at a premium. The module's pin arrangement is thoughtfully laid out to facilitate easy PCB routing and assembly, minimizing the risk of errors during the manufacturing process.

In summary, the ON Semiconductor STK611-721-E IPM is a robust, efficient, and integrated solution for motor control applications, offering designers a reliable and user-friendly component that can significantly reduce the time-to-market for their products.
