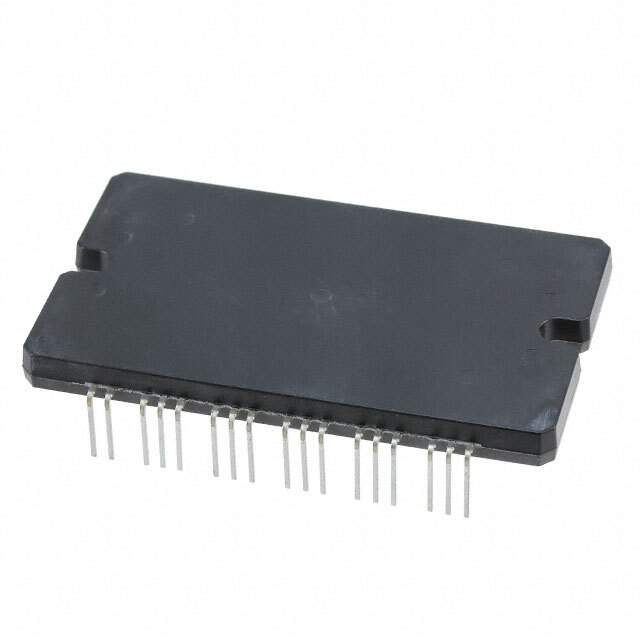

ON Semiconductor STK5F1U3E3D-E Intelligent Power Module

The ON Semiconductor STK5F1U3E3D-E is a highly integrated, compact, and efficient Intelligent Power Module (IPM) designed for advanced motor drive applications such as those used in washing machines, air conditioners, and industrial machinery. This module combines high-speed IGBTs, fast recovery diodes, gate drivers, and protection circuits in a single package, providing a complete solution to drive and protect the motor efficiently.

Key Features

• Integrated Design: The STK5F1U3E3D-E combines control and power components in a single package, significantly reducing the complexity and footprint of the motor control circuitry.
• High Voltage and Current Rating: With a 600V voltage rating and a 15A current rating, this IPM can handle robust applications that require high power levels.
• Protection Features: It includes under-voltage lockout, over-current, and over-temperature protection, ensuring the longevity and reliability of the module and the system it controls.
• Efficient Operation: The module's IGBTs feature low saturation voltage and fast switching characteristics, minimizing power losses and improving overall system efficiency.
• Easy-to-Use: The built-in bootstrap diodes and dedicated gate drive circuitry simplify the design of the external gate drive circuit.
• Compact Package: Housed in a DIP-S3 package, the STK5F1U3E3D-E is designed for space-constrained applications.

Applications

The STK5F1U3E3D-E is ideal for a wide range of applications where efficient power control is essential. Its robust design and integrated features make it particularly well-suited for:

• Inverter-driven appliances
• Variable speed motor drives
• Industrial automation systems
• Fan controllers
• Pump controllers

Conclusion

The ON Semiconductor STK5F1U3E3D-E Intelligent Power Module represents a leap forward in motor control technology, offering designers a highly integrated, reliable, and efficient solution for a wide range of power applications. Its combination of advanced features and protection mechanisms in a compact package makes it an excellent choice for modern industrial and consumer applications.
