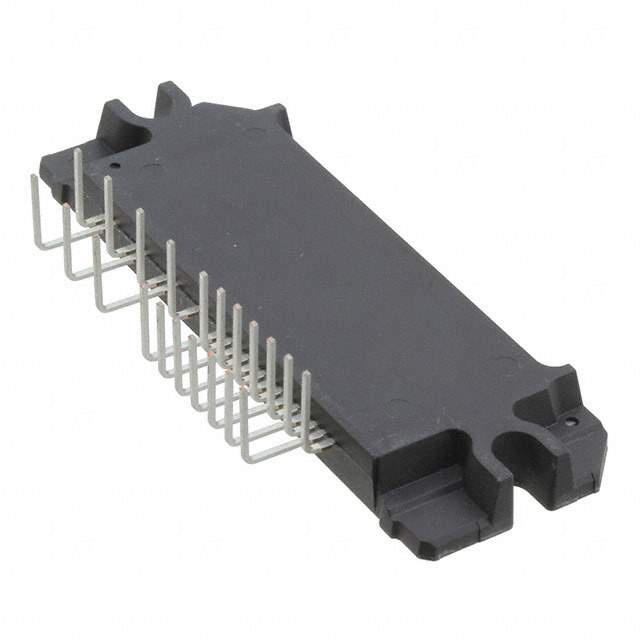

The STK554U392A-E from ON Semiconductor is an advanced intelligent power module that integrates power devices, drivers, and protection features into a single, compact package. Designed to drive three-phase brushless DC motors, it is an ideal solution for applications requiring high efficiency and reliable performance, such as air conditioners, refrigerators, washing machines, and industrial drives.

Key Features

• Integrated Inverter Power Stage: The module includes six IGBTs with inverse diodes, which form a complete three-phase inverter circuit, simplifying the design and reducing the component count.
• High Voltage and Current Rating: The device is capable of handling up to 600V and 15A, making it suitable for a wide range of motor control applications.
• Built-in Protection: Equipped with overcurrent, overtemperature, and under-voltage lockout protection, the module ensures safe operation under various conditions.
• High-Efficiency Operation: The low on-resistance of the IGBTs and optimized gate drive circuits contribute to the high efficiency of the module.
• Compact Size: The integration of multiple functions into a single package reduces the PCB footprint and simplifies the thermal management of the system.

Applications

The STK554U392A-E is designed for a variety of high-performance applications that require efficient and reliable motor control. Its robust design and integrated features make it particularly well-suited for:

• Home appliances
• Industrial motor drives
• Fans and pumps
• Other three-phase inverter applications

Technical Specifications

Overall, the STK554U392A-E from ON Semiconductor is a powerful and efficient solution for advanced motor control applications, offering ease of use, high performance, and reliability.
