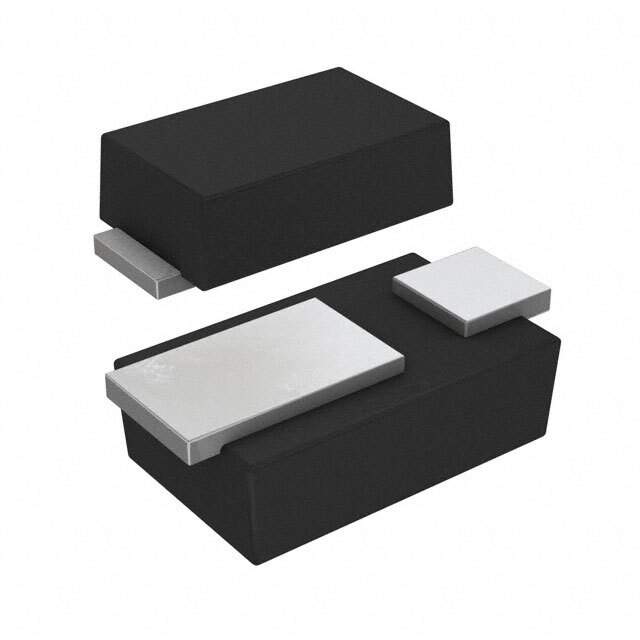

ON Semiconductor SS14HE Schottky Diode

The ON Semiconductor SS14HE is a high-efficiency Schottky diode designed to offer low forward voltage drop and high current capability. This diode is a popular choice in a variety of power management applications due to its compact size and reliability. It is particularly well-suited for use in low voltage, high frequency inverters, free-wheeling, and polarity protection applications.

Key Features:

• Low Forward Voltage Drop: The SS14HE provides a low forward voltage drop which enhances power efficiency and results in lower power loss during operation.
• High Current Capability: With a high forward surge current capability, this diode is able to handle high current spikes without degradation, ensuring a reliable performance in demanding situations.
• High Reliability: ON Semiconductor's commitment to quality means that the SS14HE is built to offer stable and long-lasting performance, even in harsh environments.
• Surface Mount Package: The device comes in a DO-214AC (SMA) surface mount package, which is ideal for automated assembly processes and saves space on the PCB.
• Lead-Free and RoHS Compliant: The SS14HE is lead-free and complies with the RoHS directive, making it an environmentally friendly choice for electronic designs.

Applications:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-DC converters
• Automotive applications

The SS14HE Schottky diode from ON Semiconductor is an essential component for designers looking to enhance the efficiency and reliability of their power management systems. Its combination of low forward voltage, high current handling, and compact footprint makes it a versatile choice that can be integrated into a wide array of electronic devices.
