Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel
Product Status Not For New Designs
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 20 V
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number SS12
Standard Package 7,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 340402-SS12
Package Bulk
Product Status Obsolete
Tool Type Nut Driver
Tip Type Hex Socket
Size 3/8"
Length - Blade 1.50" (38.1mm)
Length - Overall 3.75" (95.3mm)
Features Chrome Finish, Color Coded, Hollow Shaft, Stubby
Ultra Librarian 3D Model Ultra Librarian SS12 CAD Model

Description

Product Overview: SS12 Schottky Barrier Rectifier

The SS12 is a high-performance Schottky Barrier Rectifier from ON Semiconductor, designed to offer efficient and reliable operation for a wide range of applications. This rectifier is part of the SS series, which is well-known for its low power loss, high efficiency, and robustness. The SS12 is particularly suitable for use in low voltage, high frequency inverters, free-wheeling, and polarity protection applications.

Key Features

  • High Current Capability: The SS12 is capable of conducting up to 1 Ampere (A) of continuous forward current, making it suitable for high current applications.
  • Low Forward Voltage Drop: With a forward voltage drop as low as 0.55 volts, this device ensures minimal power loss and improved efficiency, which is critical in power-sensitive designs.
  • High Surge Capability: The device can withstand high surge currents, providing robust performance and reliability in demanding situations.
  • Temperature Range: The operating junction temperature range is from -55°C to +125°C, allowing for stable operation in extreme environmental conditions.

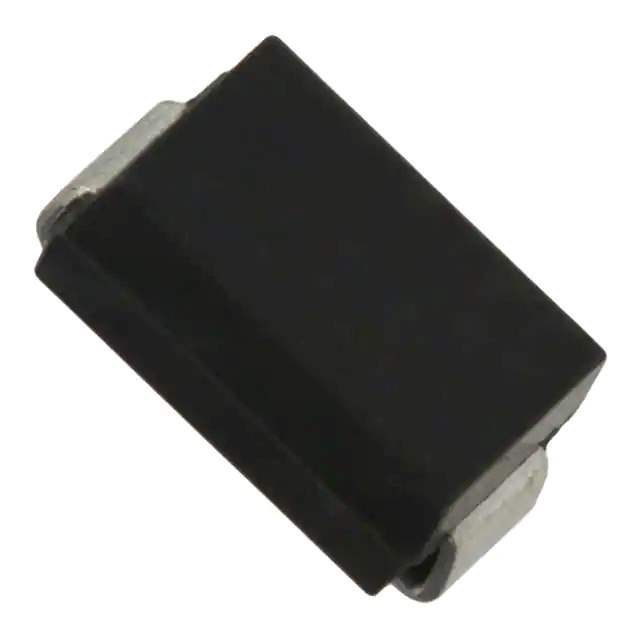

  • Compact and Durable: Housed in a compact DO-214AC (SMA) package, the SS12 is not only space-efficient but also rugged enough to withstand mechanical stress.

Applications

The versatility of the SS12 allows it to be integrated into a variety of electronic circuits. It is commonly used in power management applications, including:

  • Low voltage, high frequency inverters
  • Free-wheeling diodes in converters and motor control circuits
  • Polarity protection devices
  • DC/DC converters
  • Power supply applications

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products, and the SS12 is no exception. It is manufactured to meet strict industry standards, ensuring both quality and reliability for critical electronic applications. With its superior performance characteristics and ON Semiconductor's reputation for quality, the SS12 is an excellent choice for designers looking to enhance the efficiency and longevity of their electronic products.
