ON Semiconductor SD05T1G Transient Voltage Suppressor

The ON Semiconductor SD05T1G is a state-of-the-art Transient Voltage Suppressor (TVS) designed to protect voltage-sensitive components from destruction or degradation. This robust device is specifically engineered to safeguard data lines and other circuits against Electrostatic Discharge (ESD), Electrical Fast Transients (EFT), and other high-energy transients that can occur due to sudden voltage spikes in electronic equipment.

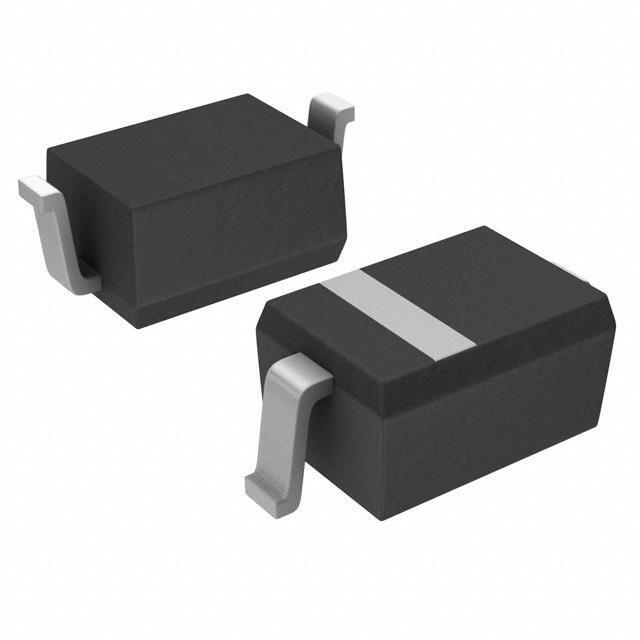

Featuring a low clamping voltage and fast response time, the SD05T1G is an ideal solution for a wide range of applications that require reliable protection against transient voltages. Its compact SOD-323 package makes it suitable for high-density circuit board designs, ensuring that it can be easily integrated into a variety of electronic systems without taking up significant space.

Key Features:

• ESD Protection: The SD05T1G can withstand ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard, providing robust defense for sensitive components.
• Low Clamping Voltage: It offers a low clamping voltage, which ensures that the protected component is exposed to minimal stress during transient conditions.
• Fast Response Time: The device reacts quickly to transients, ensuring that the protection is applied almost instantaneously to prevent damage to the circuit.
• Peak Power Dissipation: Capable of handling peak pulse power of 400 Watts at 10/1000μs waveform, it can absorb significant transient energy without performance degradation.
• Low Leakage Current: With a low leakage current, it minimizes power consumption when the device is in standby mode, making it suitable for energy-sensitive designs.
• Operating Temperature Range: The SD05T1G operates efficiently across a broad temperature range, ensuring reliable performance in diverse environments.

Whether used in telecommunications, computer systems, network devices, or portable electronics, the ON Semiconductor SD05T1G provides the necessary protection to maintain the integrity and reliability of electronic equipment. By integrating this TVS diode into your design, you can significantly enhance the durability and longevity of your products against the unpredictable nature of transient voltage events.

For more detailed specifications and application guidelines, designers and engineers are encouraged to consult the datasheet provided by ON Semiconductor, which offers comprehensive information to ensure optimal usage of the SD05T1G Transient Voltage Suppressor.
