Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr onsemi
Series SWITCHMODE™
Package Tube
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 600 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 40 V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package DPAK
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number SBRD8340
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1379726-SBRD8340G
Ultra Librarian 3D Model Ultra Librarian SBRD8340G CAD Model

Description

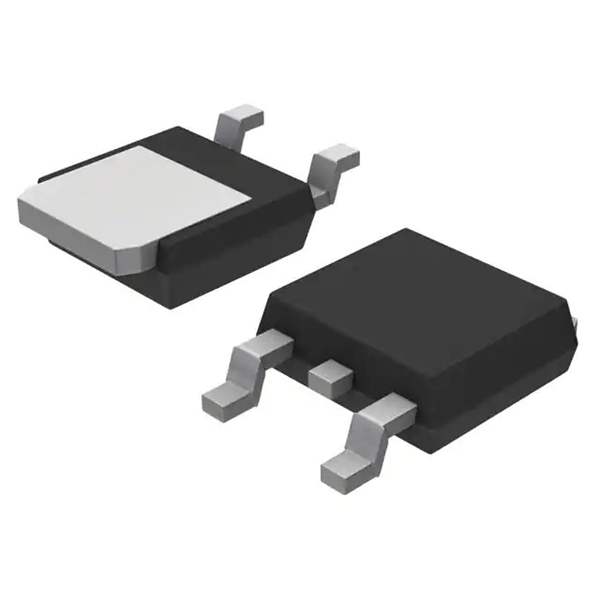

ON Semiconductor SBRD8340G

The SBRD8340G is a state-of-the-art power rectifier from ON Semiconductor, renowned for its efficiency and reliability in a wide array of electronic applications. This component is specially designed to cater to the demanding requirements of high-performance power supply systems, offering a seamless solution for engineers looking to enhance their designs.

Key Features

  • High Surge Capability: The SBRD8340G is capable of withstanding high surge currents, making it an ideal choice for applications that experience frequent power spikes.
  • Low Forward Voltage Drop: It boasts a low forward voltage drop, which contributes to reduced power loss and improved efficiency in operation.
  • High Temperature Operation: Engineered to operate effectively at high temperatures, this rectifier maintains its performance even under thermal stress.
  • Super Barrier Rectifier Technology: Utilizing ON Semiconductor's proprietary Super Barrier Rectifier (SBR) technology, the SBRD8340G offers superior reverse avalanche capability and increased reliability over traditional Schottky diodes.

Applications

The versatility of the SBRD8340G makes it suitable for a variety of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • Power Factor Correction (PFC) circuits
  • Free-Wheeling diodes in converters and motor control circuits
  • Automotive environments where high reliability is essential

Specifications

Parameter Value Package TO-252 (DPAK) Maximum Repetitive Reverse Voltage (V<sub>RRM) 40V Average Rectified Forward Current (I<sub>F(AV)) 8A Non-Repetitive Peak Forward Surge Current (I<sub>FSM) 100A Operating Junction Temperature (T<sub>J) -55°C to +150°C

With its robust design and superior performance, the ON Semiconductor SBRD8340G is a perfect choice for designers seeking a high-quality power rectifier that can handle the most challenging electrical environments.
