ON Semiconductor PN4117 JFET Transistor Overview

The PN4117 is a high-performance JFET (Junction Field Effect Transistor) from ON Semiconductor, renowned for its reliable and efficient electronic components. This particular JFET is designed to offer low noise operation, high input impedance, and low leakage current, making it an ideal choice for a wide range of applications that require amplification and switching at low power levels.

Key Features

• Device Type: N-Channel JFET
• Voltage - Breakdown (V(BR)GSS): 40V
• Drain to Source Voltage (Vdss): 35V
• Current - Drain (Idss) @ Vds (Vgs=0): 2mA to 20mA
• Gate-Source Cutoff Voltage (Vgs(off) @ Id): 0.5V to 5V
• Zero Gate Voltage Drain Current (Id(Off) @ Vds): 1nA (Max)
• Forward Transconductance (Min) @ Id, Vgs: 2mS @ 5mA, 10V
• Power - Max: 360mW
• Operating Temperature: -55°C to +150°C
• Mounting Type: Through Hole

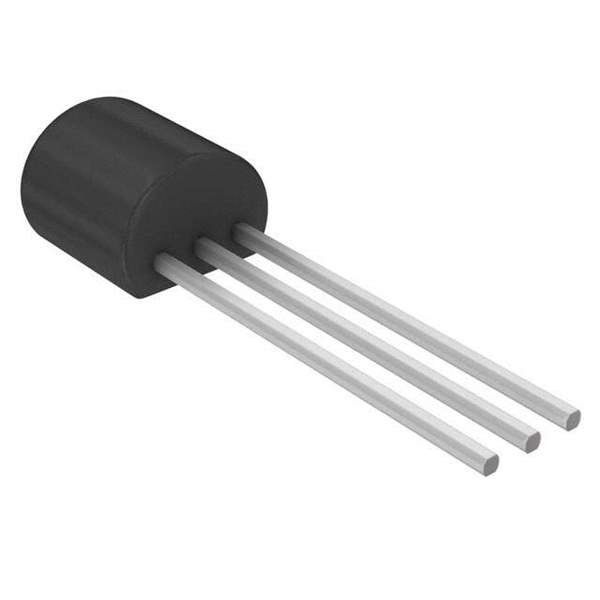

• Package / Case: TO-92-3

Applications

The PN4117 JFET from ON Semiconductor is versatile and can be used in various electronic circuits. Its high input impedance makes it suitable for impedance buffering in analog circuits, such as audio amplifiers and preamplifiers. It is also commonly used in low-power switching applications, as well as in sensors and instrumentation due to its low noise characteristics.

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The PN4117 is manufactured with precision to ensure consistent performance and reliability. It is designed to meet the stringent requirements of industrial and consumer electronic products, providing a dependable solution for designers and engineers.

Environmental Considerations

The PN4117 JFET is compliant with RoHS (Restriction of Hazardous Substances) directives, which means it is manufactured with a focus on environmental safety by restricting the use of certain hazardous materials. This compliance ensures that the PN4117 is suitable for use in electronic products that are environmentally friendly and safe for consumers.
