ON Semiconductor PCA9306USG Dual Bidirectional I2C-Bus and SMBus Voltage-Level Translator

The ON Semiconductor PCA9306USG is a highly versatile dual bidirectional I2C-bus and SMBus voltage-level translator that is essential for applications where the I2C bus must operate at different voltage levels. The PCA9306USG is designed for multi-voltage systems where the need to translate between different logic levels is critical.

Constructed with the robustness and reliability expected from ON Semiconductor, this device allows for the translation between voltages as low as 1.2V and up to 5.5V, making it perfect for interfacing devices operating at different voltage levels within the same system. This feature is particularly useful in battery-powered applications where conserving energy is a priority and different components may require various operating voltages.

The PCA9306USG is equipped with two separate bidirectional open-drain channels, Channel A and Channel B, which can be used independently. With its open-drain design, the PCA9306USG supports bidirectional voltage translation without the need for a direction pin, simplifying the design and interface process. This allows it to be used with I2C and SMBus, which are inherently open-drain, making it a seamless fit for these types of serial communication protocols.

Additionally, the PCA9306USG is designed with a low on-capacitance and low on-resistance to provide minimal signal distortion, ensuring reliable and high-quality signal translation. The low standby current is another feature that contributes to the energy efficiency of the device.

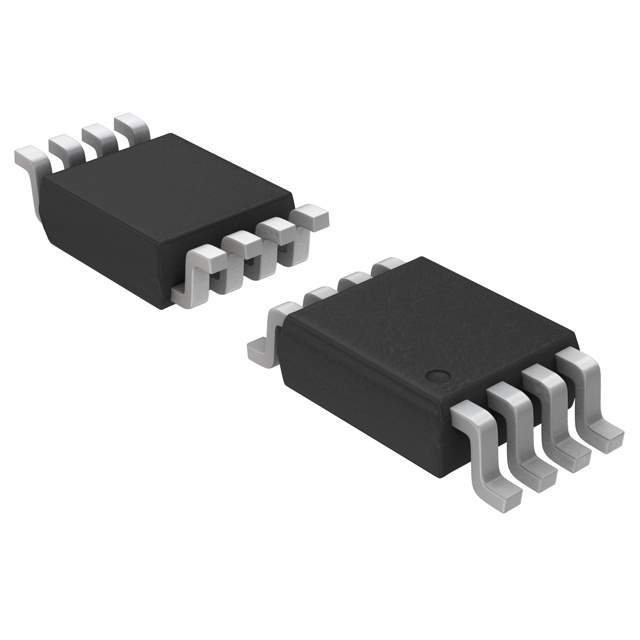

Its small footprint is provided by the US8 package, ensuring that it consumes minimal board space and is suitable for space-constrained applications. The PCA9306USG is also characterized for operation from -40°C to +85°C, providing a wide operating temperature range that enhances its versatility for various industrial and consumer applications.

In summary, the ON Semiconductor PCA9306USG is a compact, efficient, and reliable solution for voltage level translation in mixed-voltage systems. Its compatibility with I2C and SMBus protocols, along with its wide voltage range and low power consumption, make it an ideal choice for designers looking to enhance their multi-voltage interface capabilities.
