Products specifications

Category Integrated Circuits (ICs)>Logic - Translators, Level Shifters
Mfr onsemi
Package Tape & Reel
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 2
Voltage - VCCA 1 V ~ 3.6 V
Voltage - VCCB 1.8 V ~ 5.5 V
Output Type Open Drain
Temperature Range - Operating -55°C ~ 125°C (TA)
Features Auto-Direction Sensing
Mounting SMD (SMT)

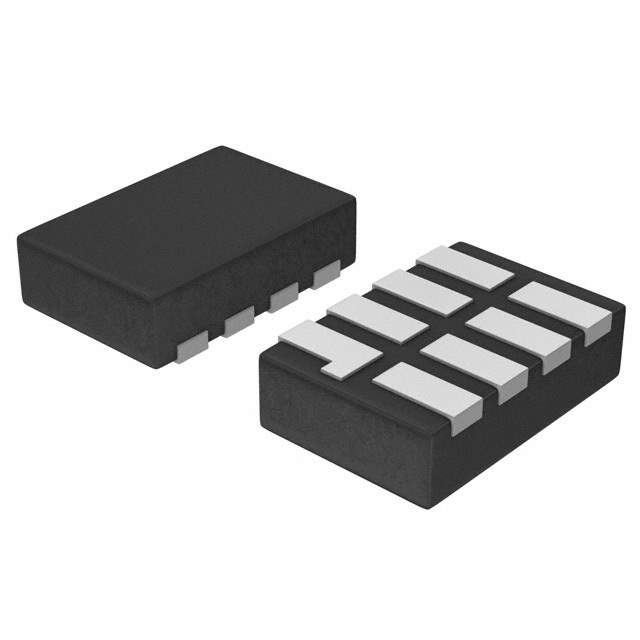

Package / Case 8-UFDFN
Supplier Device Package 8-UDFN (1.45x1)
Base Product Number PCA9306
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names PCA9306FMUTCGOSCT,PCA9306FMUTCGOSDKR,PCA9306FMUTCGOSTR,ONSONSPCA9306FMUTCG,2156-PCA9306FMUTCG-OS
Standard Package 3,000
Win Source Part Number 1145447-PCA9306FMUTCG
Ultra Librarian 3D Model Ultra Librarian PCA9306FMUTCG CAD Model

Description

ON Semiconductor PCA9306FMUTCG: A Dual Bidirectional I2C-Bus and SMBus Voltage-Level Translator

The PCA9306FMUTCG is a versatile and efficient voltage-level translator from ON Semiconductor, designed specifically for I2C-Bus and SMBus applications. This compact device allows for seamless communication between devices operating at different voltage levels, ranging from 1.8V to 5.5V. It is an essential component for system designers who need to bridge the gap between low voltage and higher voltage circuits within their digital ecosystems.

Featuring a dual bidirectional open-drain channel, the PCA9306FMUTCG ensures that data can flow in both directions, making it incredibly useful for multi-voltage systems. It is particularly adept at translating voltages between the two channels, which means that low-voltage (1.8V) peripherals can communicate with 5V parts without any risk of damage due to overvoltage. This makes the PCA9306FMUTCG an ideal solution for interfacing devices that have mismatched voltage domains.

The device comes in a compact UQFN-8 package, which is not only space-efficient but also offers excellent thermal performance. The PCA9306FMUTCG is designed with the robustness expected from ON Semiconductor, featuring high-impedance SDA and SCL pins when the translator is disabled, and providing a power-off protection that ensures the I2C-bus lines are held high in the event of power loss.

Additionally, the PCA9306FMUTCG supports hot insertion, which is a critical feature for applications that require components to be added or removed without the need to power down the entire system. This hot-swap capability simplifies maintenance and upgrades, thus improving overall system reliability and uptime.

ON Semiconductor's PCA9306FMUTCG is not only practical but also designed for easy implementation. It requires no direction control, making the design process straightforward and reducing time-to-market. This device is suitable for a wide array of applications, including but not limited to, mobile devices, computers, battery management, and any other systems where I2C or SMBus communication is utilized across different voltage domains.

Overall, the PCA9306FMUTCG is a highly reliable and user-friendly solution for voltage-level translation requirements in I2C and SMBus protocols, ensuring seamless communication in multi-voltage systems.
