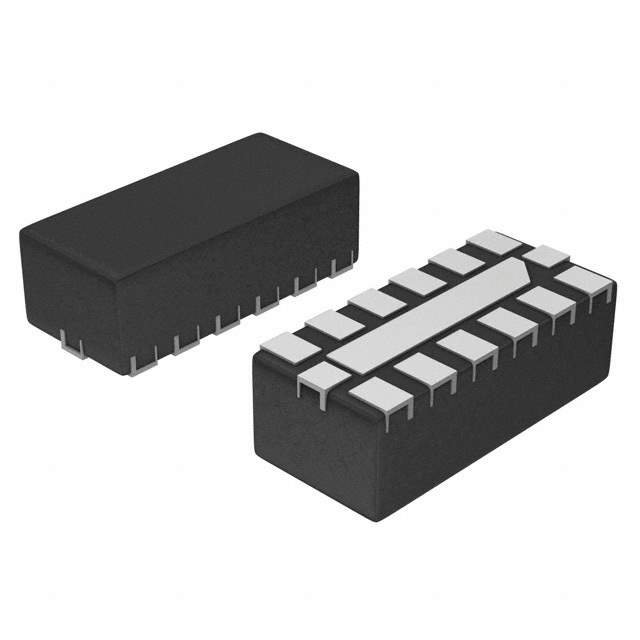

The ON Semiconductor NUF6400MNTBG is a cutting-edge EMI filter with ESD protection, designed to provide a comprehensive solution for electronic devices susceptible to electromagnetic interference and electrostatic discharge. This component is particularly suitable for high-speed data lines and signal lines in a wide range of applications, including mobile phones, personal computers, and other portable electronic devices where space is at a premium and performance is paramount.

Key Features

• Integrated EMI Filtering: The NUF6400MNTBG features built-in EMI filters that effectively mitigate unwanted electromagnetic noise, ensuring signal integrity and reducing the risk of data corruption.
• ESD Protection: This device offers robust ESD protection that meets IEC61000-4-2 Level 4 standards, safeguarding sensitive components from electrostatic discharges as high as ±20 kV (air discharge) and ±15 kV (contact discharge).
• Compact Design: The ultra-compact package (1.0 x 1.5 mm) makes it an ideal choice for space-constrained applications, without compromising on performance.
• Low Capacitance: With its low input capacitance, the NUF6400MNTBG is optimized for high-speed signal applications, ensuring minimal signal attenuation and preserving data integrity.
• Low Clamping Voltage: The low clamping voltage feature ensures that during an ESD event, the transient voltage is kept to a minimum, further protecting downstream circuits.

Applications

The versatility of the NUF6400MNTBG allows it to be utilized in a diverse array of electronic devices. Its primary applications include:

• Mobile and Smart Phones
• Personal Computers and Laptops
• Portable Media Players
• Digital Cameras
• Tablets and E-Readers
• GPS Units
• Other High-Speed Data Interface Applications

ON Semiconductor's commitment to quality and performance is evident in the NUF6400MNTBG, making it an excellent choice for designers looking to enhance the reliability and functionality of their electronic products.
