Same model may have multiple batches, images only for reference.

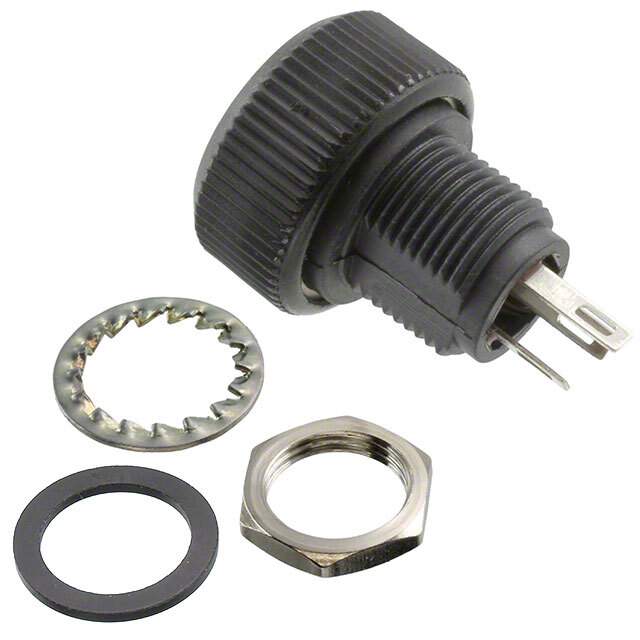

P16NP473MAB15 Real Image
Same model may have multiple batches, images only for reference.

P16NP473MAB15

Part No P16NP473MAB15
Manufacturer Vishay
Catalog Rotary Potentiometers, Rheostats
Description POT 47K OHM 1W CERMET LINEAR / 47k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Cermet 1W Solder Lug
Datasheet
P16NP473MAB15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Manufacturer Vishay Sfernice
Packaging Bulk
Resistance (Ohms) 47k
Tolerance ±20%
Power (Watts) 1W
Built in Switch None
Number of Turns 1
Features Sealed
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient ±150ppm/°C
Rotation 300°
Resistive Material Cermet
Termination Style Solder Lug
Actuator Type Knob
Actuator Length 0.346" (8.80mm)
Actuator Diameter 0.630" (16.00mm)
Bushing Thread M10 x 0.75
Mounting Panel Mount
Size - Body Round - 0.630" Dia (16.00mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number P16NP-47K
Standard Package 20
Win Source Part Number 1325958-P16NP473MAB15
Ultra Librarian 3D Model Ultra Librarian P16NP473MAB15 CAD Model

Description

The Vishay Sfernice P16NP473MAB15 is a 47k ohm linear taper rotary potentiometer.

  • Resistance: 47k ohm
  • Taper: Linear
  • Power Rating: 1W
  • Tolerance: ±20%
  • Mounting: Panel Mounted
  • Bushing Thread: M10 x 0.75
  • Actuator Type: Knob
  • Actuator Length: 0.346” (8.80mm)
  • Actuator Diameter: 0.630” (16.00mm)
  • Rotation Angle: 300°
  • Number of Turns: 1
  • Resistive Material: Cermet
  • Sealed: Yes
