The NTH4L022N120M3S is a cutting-edge Silicon Carbide (SiC) MOSFET brought to you by ON Semiconductor, a renowned leader in power and signal management. This high-efficiency, high-speed power MOSFET is specifically designed to meet the demanding needs of a wide range of applications, including but not limited to electric vehicles (EVs), solar inverters, and high-performance power supplies.

Key Features

• Advanced Material: Utilizes Silicon Carbide (SiC), which provides superior thermal performance and higher efficiency compared to traditional Silicon MOSFETs.
• High Voltage Tolerance: With a drain-to-source voltage (Vds) of 1200V, it offers robust performance for high-voltage applications.
• Low On-Resistance: Features a low on-resistance (Rds(on)) of 22 mOhm, minimizing conduction losses and improving overall efficiency.
• Fast Switching: The device's fast switching capabilities reduce switching losses and improve performance in high-frequency power conversion systems.
• High Current Capacity: Capable of handling continuous drain currents (Id) up to 33A, making it suitable for high-power applications.

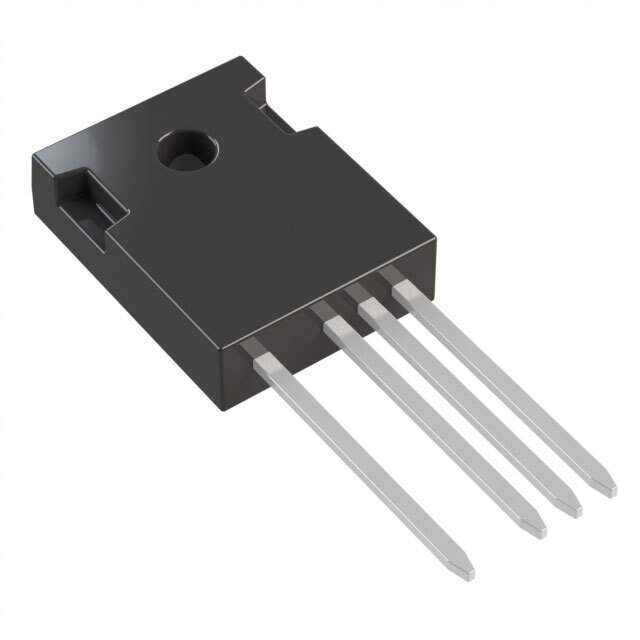

• TO-247 Package: Comes in a TO-247 package that offers excellent heat dissipation and ease of integration into various circuit designs.

Applications

• Electric Vehicles (EV) - for efficient power conversion in EV charging stations and onboard chargers.
• Solar Power Inverters - to maximize the efficiency of converting solar energy into usable electrical power.
• Power Supplies - for high-performance and reliability in server and telecom power systems.
• Industrial Applications - including motor drives and power factor correction modules.

The NTH4L022N120M3S MOSFET from ON Semiconductor is engineered to provide exceptional performance with its SiC technology. It is an excellent choice for designers looking to enhance power density, efficiency, and reliability in their high-voltage, high-power applications.
