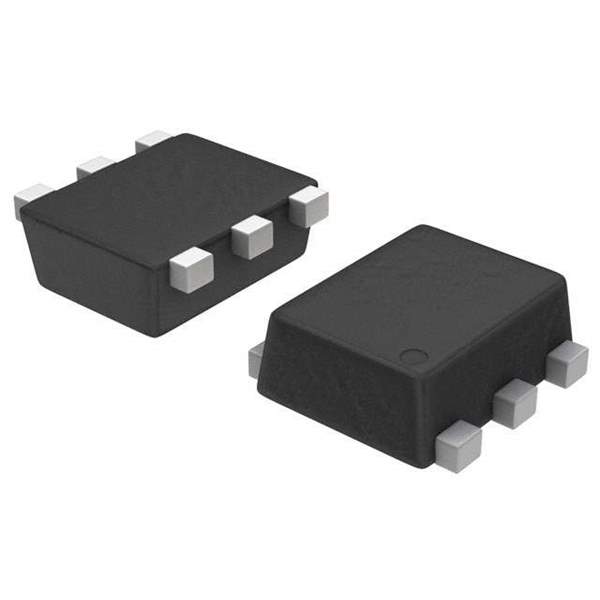

The ON Semiconductor NSR0115CQP6T5G is a high-performance, low-power Schottky diode that has been meticulously designed for applications that demand both efficiency and speed. This diode is a perfect solution for engineers looking to enhance their power management systems, as it offers a combination of low forward voltage drop and fast switching capabilities.

Key Features

• Low Forward Voltage: The NSR0115CQP6T5G boasts a low forward voltage drop, which reduces power loss and improves efficiency in the application circuitry.
• Fast Switching Speed: With its fast switching characteristics, this diode is ideal for high-frequency applications, ensuring minimal delay and high performance.
• Low Leakage Current: The device exhibits low leakage current, which enhances the overall performance by reducing power consumption when the diode is in the reverse-biased condition.
• Compact Package: Housed in a small SOD-923 package, the NSR0115CQP6T5G is suitable for space-constrained applications, allowing for high-density circuit designs.
• RoHS Compliant: This product is RoHS compliant, meeting the environmental standards that restrict the use of hazardous substances in electronic equipment.

Applications

The NSR0115CQP6T5G is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• Power supply circuits
• DC-DC converters
• Reverse voltage protection
• Switching power supplies
• Portable devices
• Automotive applications

Technical Specifications

With its robust construction and advanced specifications, the ON Semiconductor NSR0115CQP6T5G Schottky diode is engineered to meet the stringent requirements of modern electronic devices, providing reliability and performance that designers can trust.
