The NRVUS1JFA series from ON Semiconductor represents a line of high-efficiency, surface-mount Schottky barrier rectifiers designed for applications requiring low voltage, high-frequency operation. These rectifiers are particularly suitable for use in power supplies, inverters, converters, freewheeling diodes, and other power-switching applications.

Key Features

• Low Forward Voltage Drop: The devices provide a low forward voltage drop, which results in reduced power loss and improved efficiency, making them ideal for high-efficiency power systems.
• High Current Capability: With a high forward surge capability, these rectifiers can handle high levels of current without performance degradation, ensuring reliability in demanding situations.
• High-Frequency Operation: The NRVUS1JFA series is optimized for high-frequency operations, which is essential for switching power supply applications.
• Guard Ring for Overvoltage Protection: The inclusion of a guard ring enhances the device's robustness against sudden overvoltage conditions, providing an additional layer of protection.

Applications

The versatility of the NRVUS1JFA series allows it to be employed in a wide range of applications. These include:

• Switching power supplies
• Converters
• Free-wheeling diodes in power converters
• Power inverters
• Automotive applications
• DC-DC converters

Technical Specifications

The NRVUS1JFA series offers a comprehensive set of technical specifications that make it a strong contender in its class:

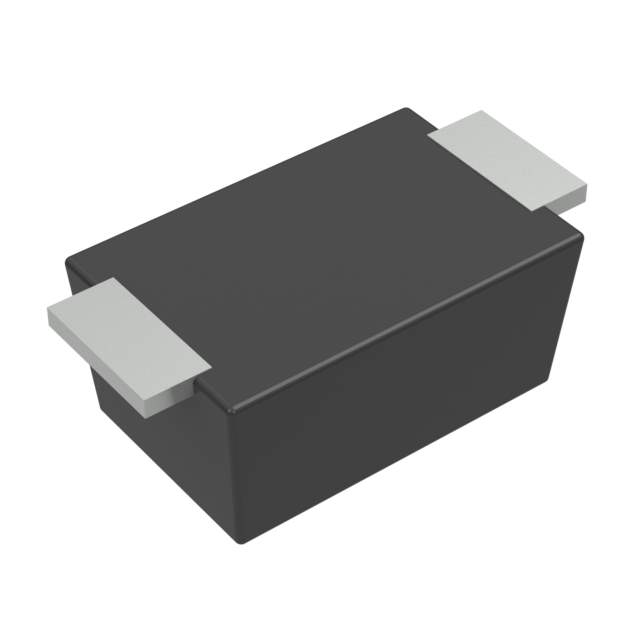

• Package: SMA (DO-214AC)
• Maximum Repetitive Reverse Voltage: 600V
• Average Rectified Forward Current: 1A
• Peak Forward Surge Current: 40A
• Operating Junction Temperature Range: -65°C to 150°C

ON Semiconductor's commitment to quality and performance is evident in the NRVUS1JFA series rectifiers. They offer designers a reliable and efficient solution for their high-frequency power requirements. With its robust design and advanced features, the NRVUS1JFA series is a top choice for engineers looking to enhance the performance of their power management systems.
