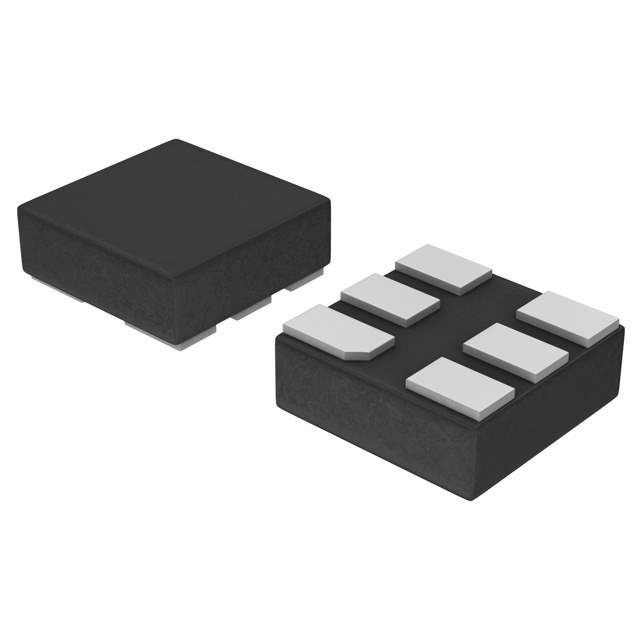

ON Semiconductor NLU2G07CMX1TCG - Dual Non-Inverting Schmitt Trigger

The NLU2G07CMX1TCG from ON Semiconductor is a high-performance, dual non-inverting Schmitt trigger designed for optimal functionality in a wide range of applications. This integrated circuit (IC) is part of ON Semiconductor's advanced CMOS logic family, offering robust noise immunity and hysteresis characteristics, making it an ideal choice for wave shaping, signal conditioning, and noise suppression purposes.

Key Features:

• Logic Type: The device features a dual non-inverting Schmitt trigger configuration that ensures reliable operation even in the presence of slow input transition rates or noisy input signals.
• Supply Voltage Range: It operates over a wide supply voltage range of 1.65V to 5.5V, accommodating various logic level requirements and making it suitable for interfacing with both low-voltage and standard logic families.
• Low Power Consumption: Designed for energy efficiency, the NLU2G07CMX1TCG boasts low static power consumption, making it an excellent choice for power-sensitive applications.
• High-Speed Operation: Despite its low power usage, the device does not compromise on speed, offering high-speed operation with a propagation delay time that is suitable for high-frequency applications.
• Output Drive Capability: The IC can source or sink up to 8 mA of output current, providing sufficient drive capability for various loads.
• Package: The NLU2G07CMX1TCG comes in an ultra-small, lead-free, halogen-free MicroPak™ package, which is ideal for space-constrained applications.
• Temperature Range: It operates over an extended temperature range of -55°C to +125°C, ensuring reliable performance across diverse environmental conditions.

Applications:

The NLU2G07CMX1TCG's versatile features make it suitable for a broad array of applications, including:

• Waveform generation and shaping
• Signal conditioning and processing
• Glitch filtering
• Debouncing circuits for switches and buttons
• Communication systems
• Embedded systems

Overall, the NLU2G07CMX1TCG from ON Semiconductor is a reliable and efficient solution for designers seeking to incorporate a dual non-inverting Schmitt trigger into their electronic designs. Its compact packaging, combined with its robust performance characteristics, ensures that it meets the needs of modern digital systems.
