ON Semiconductor NLSX3018DTR2G: A Versatile Logic Level Translator

The ON Semiconductor NLSX3018DTR2G is a high-performance, bidirectional logic level translator designed for applications requiring voltage level translation from one logic level to another. This device is particularly suited for multi-voltage systems where the need to interface between different voltage domains is essential. The NLSX3018DTR2G is part of ON Semiconductor's extensive portfolio of logic level translators that offer solutions for various digital circuitry challenges.

Key Features

• Wide Voltage Range: It supports a broad voltage range of 1.65V to 5.5V on both the A and B ports, making it compatible with a variety of logic levels used in modern electronic devices.
• Bi-Directional Interface: The NLSX3018DTR2G can transfer data in both directions, from A to B or B to A, without the need for a direction control signal, simplifying circuit design.
• High-Speed Data Transfer: With its capability to support high-speed data transfer, it is an ideal choice for applications that require fast communication between different voltage domains.
• Low Standby Current: The device features a low standby current, which contributes to the energy efficiency of the overall system in which it is used.

Applications

The NLSX3018DTR2G is versatile and can be used in a wide range of applications. These include, but are not limited to:

• Mobile Phones and Personal Digital Assistants (PDAs)
• GPS Navigation Systems
• Portable Media Players
• Data Communication Systems

Package and Quality

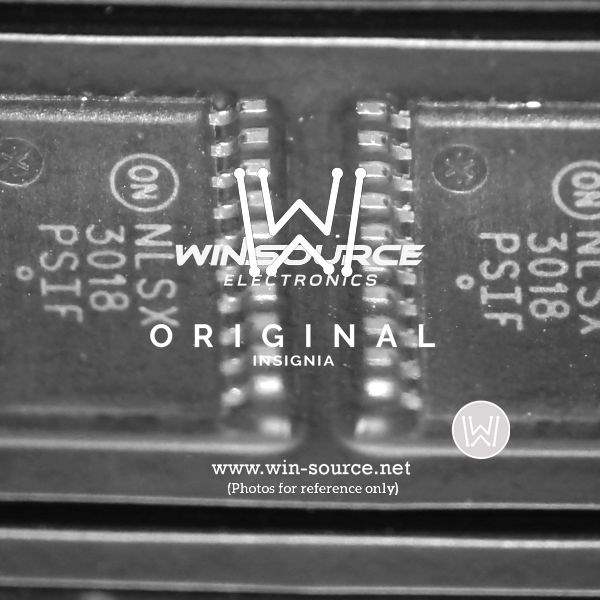

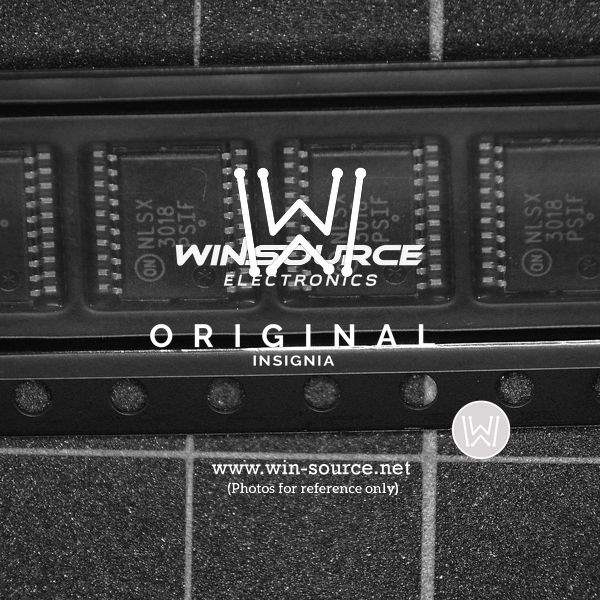

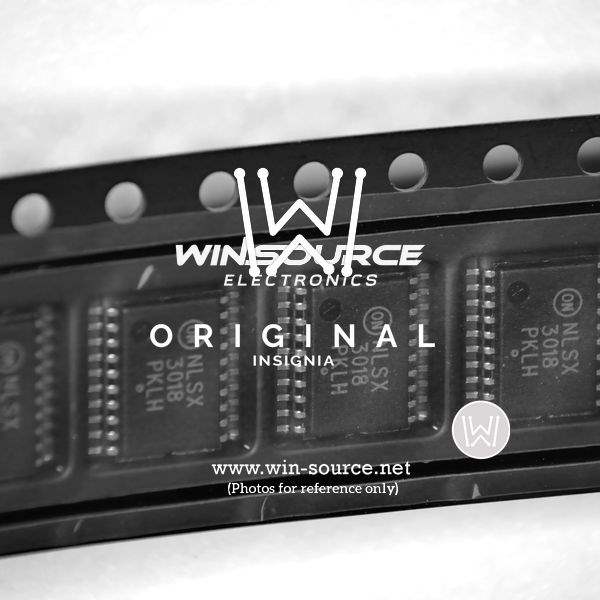

Encased in a compact TSSOP-8 package, the NLSX3018DTR2G is designed for space-constrained applications. It is provided in tape and reel packaging, which is ideal for automated assembly processes. ON Semiconductor adheres to stringent quality standards, ensuring that the NLSX3018DTR2G is a reliable component for both commercial and industrial applications.

With its robust design and flexible usage, the NLSX3018DTR2G from ON Semiconductor is a smart choice for designers looking to bridge different logic levels efficiently and reliably in their next-generation electronic products.
