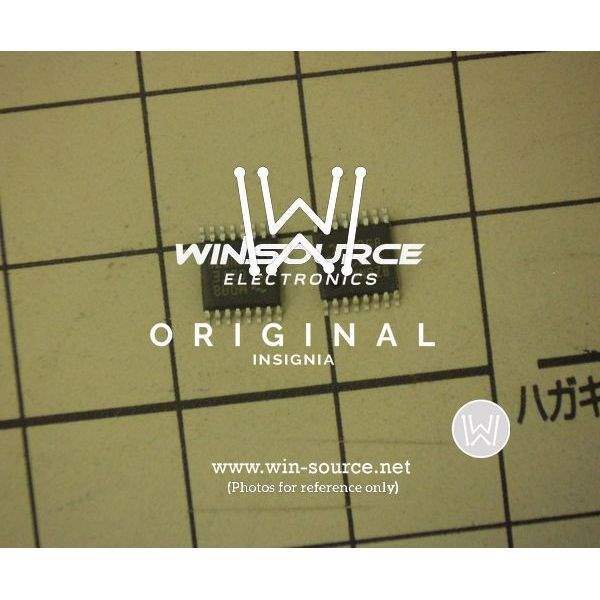

MC9S08QG8CDTE Freescale Semiconductor - NXP MC9S08QG8CDTE Real Image MC9S08QG8CDTE real image MC9S08QG8CDTE real image2818 MC9S08QG8CDTE Real Image1 MC9S08QG8CDTE Real Image2
Same model may have multiple batches, images only for reference.

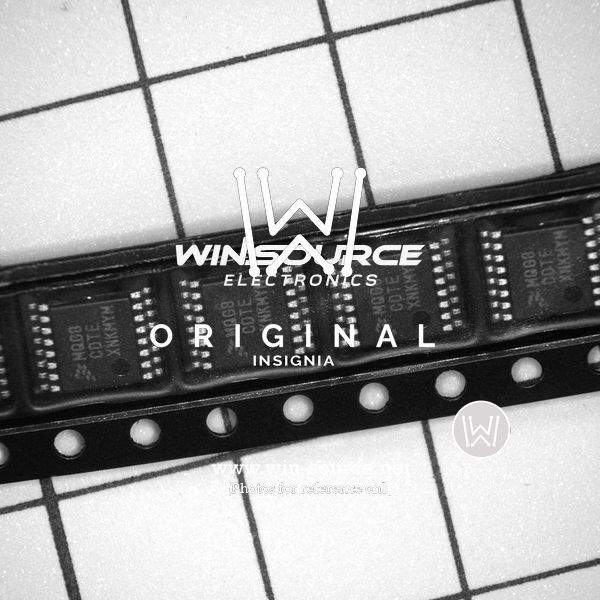

MC9S08QG8CDTE Freescale Semiconductor - NXP MC9S08QG8CDTE Real Image MC9S08QG8CDTE real image MC9S08QG8CDTE real image2818 MC9S08QG8CDTE Real Image1 MC9S08QG8CDTE Real Image2

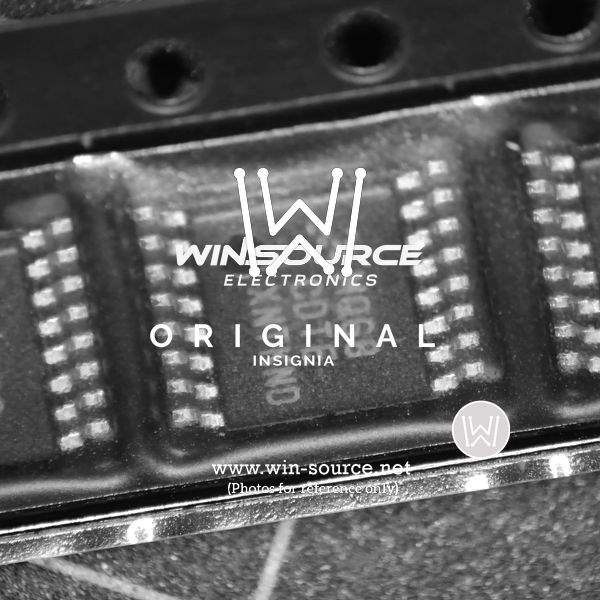

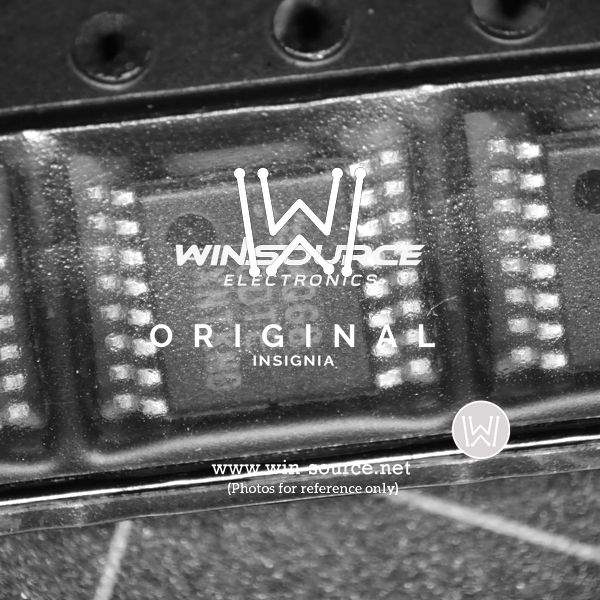

MC9S08QG8CDTE Freescale Semiconductor - NXP MC9S08QG8CDTE Real Image MC9S08QG8CDTE real image MC9S08QG8CDTE real image2818 MC9S08QG8CDTE Real Image1 MC9S08QG8CDTE Real Image2
Same model may have multiple batches, images only for reference.

MC9S08QG8CDTE

Part No MC9S08QG8CDTE
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 8KB FLASH 16TSSOP
Datasheet
MC9S08QG8CDTE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Active
Core Processor S08
Part Core Size 8-Bit
Speed(Frequency) 20MHz
Number of I/O 12
Program Memory Size 8KB (8K x 8)
Program Memory Type FLASH
Data RAM Size 512 x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 8x10b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-TSSOP
Win Source Part Number 089632-MC9S08QG8CDTE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MC9S08QG8
Introduction Date December 17, 2005
ECCN 3A991.a.2
Country of Origin China, Philippines, Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MC9S08QG8CDTE CAD Model

Description

The MC9S08QG8CDTE is an 8-bit integrated circuit manufactured by NXP.

  • Core Processor: S08
  • Speed: 20MHz
  • Program Memory Size: 8KB (8K x 8)
  • Program Memory Type: FLASH
  • I/O Pins: 12
  • Data RAM Size: 512 x 8
  • Data Converters: A/D 8x10b
  • Supply Voltage: 1.8 V to 3.6 V
  • Package: 16-TSSOP
  • Compliance: Halogen-free standards
