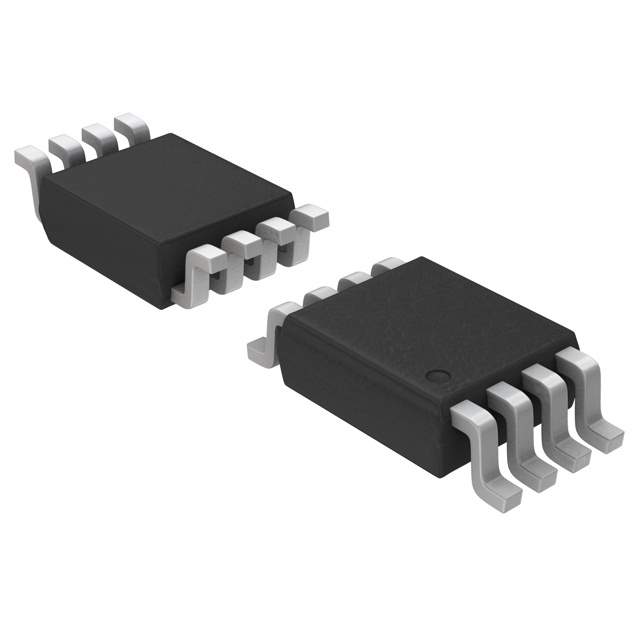

The ON Semiconductor NL7WB66US is a high-performance dual analog switch designed to deliver precision and reliability for a wide range of applications. This compact, ultra-low resistance device is an ideal solution for analog and digital signal switching, offering superior performance in a small footprint.

Key Features

• Low On-Resistance: The NL7WB66US features ultra-low on-resistance (Ron) which typically stands at 0.5 Ohms, ensuring minimal signal distortion and power loss.
• Wide Voltage Range: It operates over a broad voltage range from 1.65V to 5.5V, making it versatile for use in various circuit designs.
• High Current Handling: With a continuous current rating of up to 250 mA per switch, it can handle significant current levels for its size.
• Dual Independent Switches: The device includes two independent SPST (Single Pole, Single Throw) switches, providing flexibility in signal routing within a single package.
• Low Power Consumption: It features low power consumption, which is critical for battery-powered and energy-sensitive applications.
• Fast Switching Speeds: Fast switching speeds ensure quick response times in critical applications, minimizing delays in signal processing.
• Sub-1Ω Ron Flatness: The Ron flatness is less than 1Ω over the specified signal range, which contributes to excellent linearity and low signal distortion.

Applications

The NL7WB66US is suited for multiple applications, including but not limited to:

• Audio and video signal routing
• Data acquisition systems
• Communication systems
• Portable devices
• Sample and hold circuits
• Test and measurement equipment

Product Specifications

The NL7WB66US is available in a micro-miniature µDFN package, which is optimized for space-constrained applications. The package dimensions are 1.8mm x 1.4mm, with a height of only 0.55mm. The device is also characterized for operation from -40°C to +85°C, ensuring reliable performance across a wide range of environmental conditions.

Conclusion

With its combination of low on-resistance, high current handling, and small package size, the ON Semiconductor NL7WB66US dual analog switch represents a robust solution for designers looking to maximize performance while minimizing space and power consumption in their circuits.
