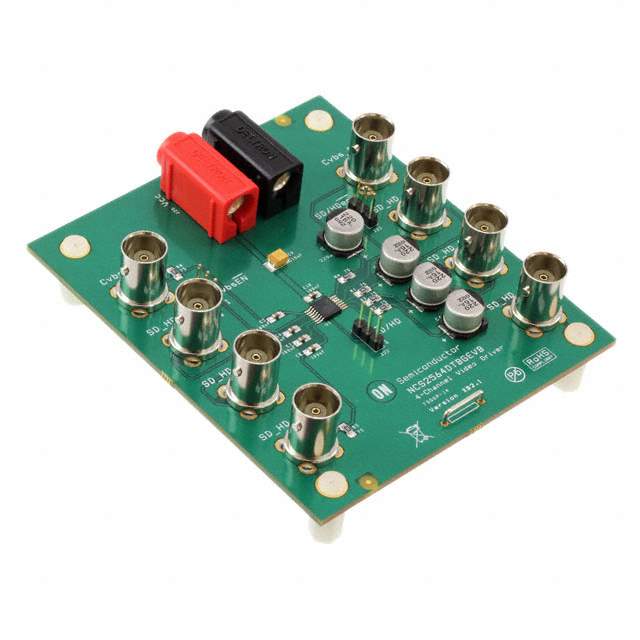

The NCS2564DTBGEVB is a high-performance evaluation board designed for testing the capabilities of the NCS2564 High Definition Video Amplifier. Manufactured by ON Semiconductor, a leader in energy-efficient innovations, this evaluation board is an essential tool for engineers and designers looking to implement the NCS2564 amplifier in their video applications.

Key Features

• High Definition Support: The NCS2564 amplifier supports full HD video signals, making it ideal for high-resolution applications.
• Triple Video Amplifier: It features a triple video amplifier configuration, which allows for the simultaneous processing of three separate video channels.
• Flexible Power Supply: The board operates over a wide range of power supplies, from 2.9V to 5.5V, providing versatility in various system designs.
• Low Power Consumption: Designed with power efficiency in mind, the NCS2564 consumes low power, making it suitable for portable and battery-powered applications.

Applications

The NCS2564DTBGEVB is engineered for a variety of video applications, including:

• High-definition televisions (HDTVs)
• Video projectors
• Security systems
• Video conferencing equipment

Easy to Use

The evaluation board is designed for ease of use, allowing for quick setup and testing. It includes all necessary connectors and can be easily integrated into existing systems for evaluation purposes.

Performance Testing

With the NCS2564DTBGEVB, users can perform comprehensive testing of the NCS2564 amplifier's performance, including gain bandwidth, slew rate, and output drive capability. This ensures that the amplifier will meet the rigorous demands of high-speed video applications.

Support and Documentation

ON Semiconductor provides extensive support and documentation for the NCS2564DTBGEVB, including detailed schematics, user manuals, and application notes. This ensures that users have all the resources they need to successfully incorporate the NCS2564 into their designs.

Whether you're developing a new video system or upgrading an existing one, the NCS2564DTBGEVB evaluation board from ON Semiconductor is an invaluable tool for ensuring your design meets the highest standards of video performance.
